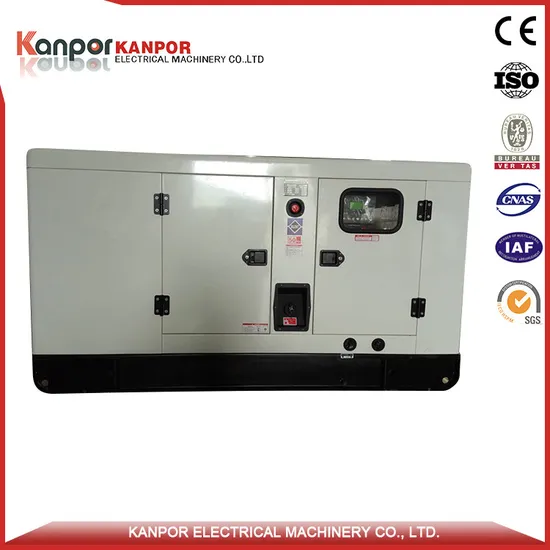

Weifang Series Ricardo Generator 60kVA White Diesel Generator Factory Supply 50Hz

US$2,200.00-5,000.00 1 Set (MOQ)

Basic Info.

Model NO.
KPR66
Type
Self-Starting Diesel Generator
Installation Method
Fixed
Stroke
Four Stroke
Cooling Method
Water Cooling
Output Type
AC Three Phase
Speed
HSS
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit
Low Noise Automation Type
Excitation Mode
AC Rotating Exciter
Certificate
CE ISO SGS Soncap TUV
Voltage
220V/127V 380V/220V 400V/230V 415V/240V 480V/277V
Engine Model
Ricardo Engine
Option
ATS
Phase
1 Phase, 3 Phase
Rated Power
48kw/60kVA
Transport Package
Plywood Case
Specification
2350x1050x1300mm
Trademark
Kanpor
Origin
Fujian, China(Mainland)
HS Code
8502110000
Production Capacity
500PCS Per Month

Packaging & Delivery

Package Size
430.00cm * 160.00cm * 250.00cm
Package Gross Weight
4900.000kg

Product Description


1. GENERATOR DATA
Voltage Available:
50Hz: 380-400-415V/220-230-240V;
60Hz: 220-380-416-440-480V/110-208-220-240V
Any special voltage is also available as client's request
Prime Power:
Comply with GB/T2820-97(eqv.ISO8528).
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
Standby Power:
standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
Product Data
Technical Data
Genset Model KPW65 KPW80 KPW94 KPW110 KPW135
Rated Power KW/KVA 48/60 58/72.5 68/85 80/100 96/120
Standby Power KW/KVA 52/65 64/80 75/94 88/110 108/135
Rated Voltage V 220V/127V 380V/220V 400V/230V 415V/240V 480V/277V 600V/346V
Speed RPM 1500/1800
Rated frequency Hz 50/60
Engine Model R4105ZD R4105IZLD R6105ZD R6105AZD R6105AZLD
Engine Power KW 56 67 84 100 121
Air intake way Turbo Turbo Turbo Turbo Turbo
Governor Mechanical Mechanical Mechanical Mechanical Mechanical
Cylinder QTY 4 4 6 6 6
Bore*Stroke mm*mm 105x125 105×125 105×125 105×130 105×130
Displacement L 4.33 4.33 6.49 6.75 6.75
Fuel Consumption g/kw.h 231 239 224 224 224
Compression Ratio 17:1 16:1 17:1 16:1 17:1
Alternator Model STF-224E STF-274F STF-224G STF-274C STF-274D
Voltage Regulation AVR
Excitation Method Brushless
Open Type Size mm 1950x900x1200 1950x900x1200 2400x900x1500 2400x900x1500 2500x900x1500
Open Type Weight kg 900 1050 1250 1350 1400
Soundproof Size mm 2350x1050x1300 2350x1050x1300 2800x1050x1600 2800x1050x1600 2900x1050x1700
Soundproof Weight kg 1300 1680 1950 2050 2150
3. PRODUCT FEATURES
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
(8).50Hz and 60Hz both are available for choice
