High-Performance 7-40 Temperature Control Valve for Efficient Cooling

Product Description

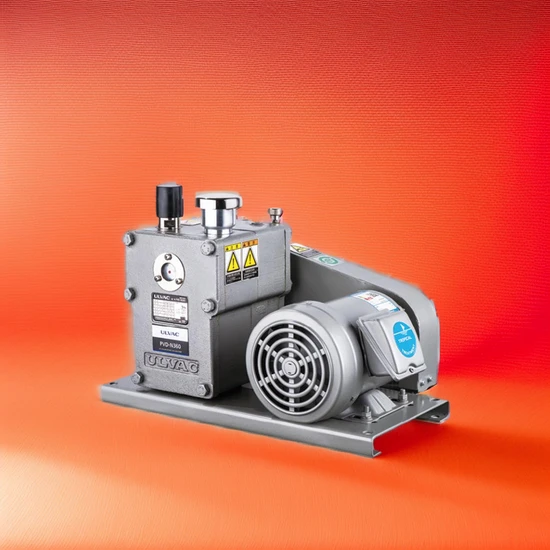

PVD-N180-1 Rotary Vane Vacuum Pump
Stable exhausting performance
Low noise
Equipped with gas ballast valve
Steam can be evacuated through exhaust hole to purify the oil in tank
Easy maintenance and inspection
PVD-XXX-1 series
Increased oil volume reduces frequency of oil changes
Reduces oxidation and deterioration of oil
Prolongs the life span of oil
Company name: Shanghai Mss International Trade Co., Ltd.
Parameters

Model		PVD-N180	PVD-N180-1	PVD-N360	PVD-N360-1
Item
Geometric pumping speed L/min	50Hz	155		310
	60Hz	186		372
Ultimate pressure *1Pa	G.V OFF*2	6.7×10-1
	G.V ON*2	6.7
Motor	kW	0.4 (4)		0.75 (4)
	Hz-V	50-380/400/415,60-400/440/460
Speed r/min	50Hz	500
	60Hz	600
Use oil		ULVOIL®R-7
Required oil L		0.3	1.5	0.5	1.7
Maximum treatment water g/h		100
Weight kg		44.5	50.5	54	62.5
Oil mist filter( Option parts)		TMN151

Applications
Introducing LiBr Absorption Chillers and Vacuum Equipment
Explore a wide range of cutting-edge products from Shanghai Mss International Trade Co., Ltd. Our offerings include:
LiBr absorption chillers for efficient cooling solutions
Illuminant for enhanced lighting
Refrigeration systems for optimal food storage
Fluid filling processes for seamless operations
Liquid crystal injectors for precision applications
Vacuum freeze drying for preserving freshness
Vacuum packing for extended shelf life
A variety of vacuum equipment for diverse needs
Upgrade your operations with our high-quality products designed to meet your specific requirements. Contact us today to learn more!
Product Name: Carrier Air Conditioner Refrigerator
Intended Use: Ideal for central air conditioning, lighting, refrigeration, refrigerant filling, liquid crystal filling, vacuum freeze drying, vacuum packaging, various vacuum equipment, and related industries.
Manufacturer: Shanghai Mss International Trade Co., Ltd.

---
