10 Ton Automatic Poultry Chicken Feed Mill Plant Animal Feed Pellet Machine

Product Description

Production Description:

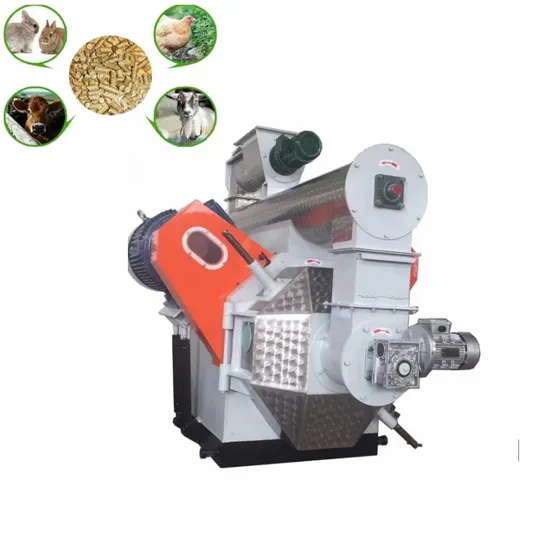

Introduction of ring die feed pellet mill:
HKJ Ring die series granulator is the main machine for pressing pellet feed . It is suitable for large and medium-sized feed companies and large farmers .
Performance characteristics :
1. The machine has the characteristics of compact structure , beautiful appearance , environment protection and airtight ,
convenient use and reliable operation ;
2. The machine can be selected according to different needs of customers : circular/ring dies with diameters of 2mm-10mm and various apertures ;
3. This machine adopts cycloidal pinwheel reducer motor to feed , using quick release hoop and overload protection device;
4. It has the quick adjustment structure of the ring die and the roller gap, and the cutter cuts evenly .
5. Double layer modulator/single modulator is used to achieve adequate curing of feed .
6. Automatic control of feeding quantity and automatic lubrication device.
Technical Parameters:

Model	Main power	Conditioner power	Capacity	Dimension	Weight
ZLSH-250	22KW	1.5KW	1-1.5 t/h	1762*616*1840 mm	850kg
ZLSH-320	22KW	2.2KW	2-4 t/h	2200*1500*1770 mm	1500kg
ZLSH-358	30KW	2.2KW	3-5 t/h	2400*1500*1770 mm	1500kg
ZLSH-406	90KW	4KW	3-8 t/h	2840*2150*2210 mm	3500kg
ZLSH-432	110KW	4KW	5-10 t/h	2840*2150*2210 mm	3900kg
ZLSH-508	150KW	5.5KW	5-13 t/h	3400*2150*2210 mm	4300kg

Most machines of feed pellet production line:
There are many equipments included in a complete feed plant machinery, for example, Hammer Mill, Mixer, Cleaning Sieve, Silo, Feed Pellet Mill, Counterflow Cooler, Feed Pellets Crumbler, Feed Pellets Grading Sieve, Automatic Weighing and Packing Machine, Conveyor, etc.
1. Hammer mill
We have many kinds of hammer mills for your choice: water drop hammer mills, multi-functional hammer mills and 9fq hammer mills etc. This process is mainly used to crush to raw materials into powder.
2. Feed Mixer
The feed mixers we have are single shaft double screw mixers, double shaft paddle mixers, vertical mixers. The process is used to mix the crushed materials with higher uniformity.
3. Feed Pellet Mill
We have kinds of different capacity of automatic animal fodder processing plant designs for your choice. The ring die automatic animal fodder processing plant design is mainly consist of feeding device (screw feeder), hardening and tempering device (conditioner), face plate, press chamber transmission system, overload protection and electrical control system.
4. Counter flow cooler
The newly pressed pellets are very high in temperature. This process is to cool the pellets to ±3-5ºC of the room temperature.
5. Feed crumbler(roller crusher)This machine is mainly to crush the big pellets into small ones. It is mainly used for the chicken feed plant machinery.
6.Pellet packaging machine
This process is to pack the pellets into bags which is convenient for storage and transportation.

Our factory:

we offer kinds of different designs to meet your requirements.
Tell us your request, we offer you the best design.

Package and Shipping :
FAQ:
1. How long is the warranty period?
2 years except wearing parts and human misuse.
2. How long is the production time after placing the order?
20-35 working days after receiving the deposit.
3. Whether the logo can be customized on the production line?
Sure. If you need to customize the logo, please provide us with the original file of your Logo.
4. How to use the machine or production line?
We'll provide instructions, videos. If necessary, our technicians can also provide video guidance.
5. Where is your loading port?
Qingdao or Shanghai or Ningbo or China any port Company Information:
Zhengzhou zhongdebao Industrial,established in 1998 ,located in zhengzhou city High-tech Industrial Park,which integrates the R&D manufacture,sales ,installation and service of all kind is a company specializing in R&D, production and sales of feed pellet machine ,wood pellet machine ,pet/fish feed pellet machine,which lays a solid foundation for producing high quality products.We always is ready to provides quality service to our customers . Zhongdebao insists on the principle of "delicatemanufacture,continual improvement,seeking superiority,satisfying customer". we are reliable partners.

---
