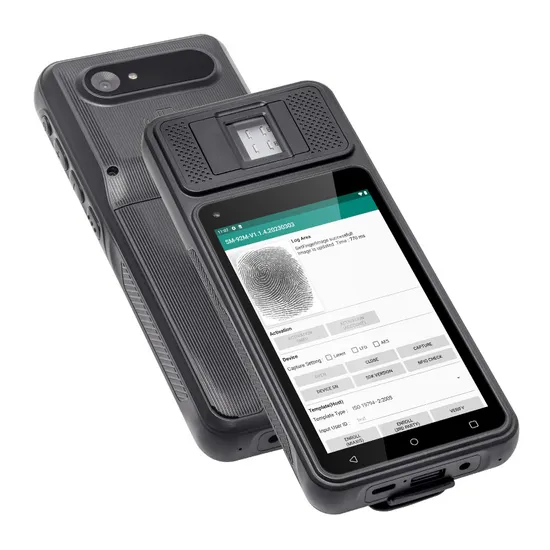

UNIWA F501 5inch NFC Portable Rugged 2D Scanner Terminal with Biometric Fingerprint Reader
1) FAP10/FAP20/FAP30 Optical Biometric Fingerprint Reader 2) Support NFC 3) Type-A and Type-C Doube USB Ports 4) MT6762 Octa Core Processor 5) Android 12 Operating System 6) 1D/2D Barcode Scanning Optional 7) 2GB/32GB or 4GB/64GB Memory 8) Removable 5000mAh Battery
| BASIC INFO |
| Model No. | UNIWA F501 |
| Operating system | Android 12 |
| Dimension | 191*80*21.3mm |
| Weight | 310g |
| Material | Plastic |
| Color | Black |
| Languages | Multi-language |
| HARDWARE |
| Display | 5.0 inches G+F IPS capacitive touch screen, 1280*720px |
| Processor | Mediatek MT6762 Cortex A53 octa core, 2.0GHz; GPU: IMG PowerVR GE8320 650MHz |
| RAM | 2GB RAM (4GB RAM optional) |
| ROM | 32GB ROM (64GB ROM optional), support TF card up to 128GB maximally |
| Camera | Double cameras: 5.0MP front, 13MP rear camera with flashlight |
| Battery | Removable 3.8V/5000mAh Li-Po battery |
| Sensors | G-sensor |
| Buttons | Power, volume +/-, scan button |
| NETWORK & CONNECTIVITY |
| Bands | 2G: GSM 850/900/1800/1900MHz |
| 3G: WCDMA 850/900/1900/2100MHz |
| 4G: FDD-LTE B1/B2/B3/B5/B7/B8/B20, TDD-LTE B38/B39/B40/B41 |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac, 2.4GHz/5GHz dual-band Wi-Fi |
| BT | V4.2 (BLE) |
| NFC | 13.56MHz, support Type A/B, Mifare, ISO14443 |
| GNSS | Support GPS/GLONASS/Beidou |
| I/O INTERFACES |
| SIM Slots | * 2SIM+1 PSAM or 1SIM+2 PSAM |
| TF Card slot | * 1 |
| USB Type-A | * 1 |
| USB Type-C | * 1 |
| DC-IN | * 1 |
| FEATURES |
| Fingerprint Module | Optional: FAP10/FAP20/FAP30, optical sensor (STQC certified) |
| 1D/2D Barcode | Optional |
| OTG function | Support |
| RELIABILITY |
| Waterproof | IP54 |
| ACCESSORIES |
| Charger(5V/2A) | *1 |
| Protective case | *1 |
| User Manual | *1 |
