Plastic Pet HDPE Preform Filling Medicine Juice Drug Water Oil Food Bottle Can Jar Container Make Making Blow Bottle Blowing Mould Moulding Mold Molding Machine

Product Description

Machine Features:

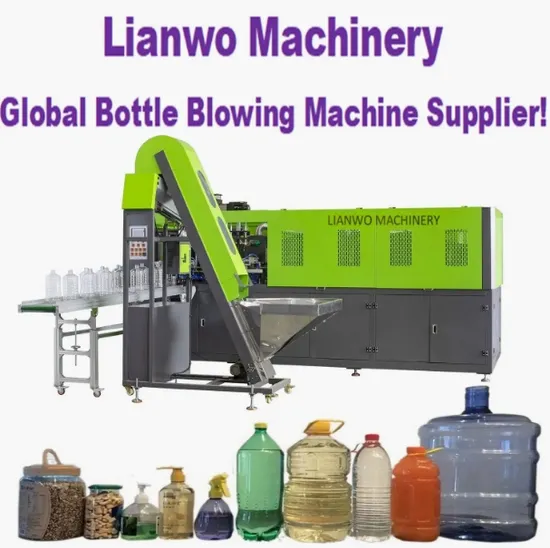

1. Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle, oil bottle, cosmetic bottle etc. Reasonable design, full automatic control, preform automatially feeded, save power and labor.
2. The mechanical part has compact and energy saving design.
3. Machine has fault alarm function and diagnostic system to allow easy maintenance.
4. The mould positioning installation makes it possible for operators to change the mould easily within 30 minutes.
5. The machine can be controlled through touch screen and running status is shown on it.
6. Heating by high-quality lamp,high penetration, to make sure each preform be heated uniformly and stably. The width and height of the reflector can be adjusted, which can be suitable for heating preforms with different wall thicknesses.
Main Parameters:

Item	L-A6	L-A4	L-A2
Theoretical Output	6000pcs/h	4000pcs/h	2200pcs/h
Max Container Volume	2L	2L	2L
Max Neck Diameter	45mm	45mm	50mm
Max Container Diameter	100mm	100mm	120mm
Max Container Height	340mm	340mm	340mm
Number of Cavity	6 Cavity	4 Cavity	2 Cavity
Total Power	45Kw	35Kw	25Kw
Real Using Power	30Kw	20Kw	12Kw
Low Pressure Air Consumption	1.6m³/min	1.6m³/min	1.2m³/min
High Pressure Air Consumption	3.6m³/min	2.4m³/min	1.6m³/min
Feeding Machine Dimension	2.0*1.2*2.2m	1.8*1.0*2.0m	1.8*1.0*2.0m
Feeding Machine Weight	300Kg	240Kg	240Kg
Machine Dimension	4.2*1.8*2.0m	3.6*1.8*2.0m	3.2*1.8*2.0m
Machine Weight	3800Kg	2200Kg	1400Kg

Free Designs for Customers:
Types of Bottles Produced by Bottle Making Machine:
Company Introduction:
Taizhou Lianwo Machinery Co., Ltd is located in Huangyan, Taizhou, Zhejiang Province, the hometown of mould in China. Our company produces high speed automatic blow molding machine, automatic hollow blow molding machine, automatic blow molding machine, semi-automatic blow molding machine and blowing mold.
The blow molding machines are widely used in the production of mineral water bottles, edible oil bottles, food packaging bottles, daily chemical bottles, agricultural medicine bottles, and many other plastic containers in packaging fields. Taizhou Lianwo Machinery Co., Ltd can provide a variety of bottle making equipments and suitable technical solutions.
Taizhou Lianwo Machinery Co., Ltd has professional design, production team, which provides a solid foundation for producing excellent quality and performance blow molding machines. Our blow molding machines are exported to America, Europe, South korea, the Middle East, Southeast Asia, Central Asia, Africa and other countries and regions, they are well received and used by our customers.
Let's create a better tomorrow hand in hand!
Machine Workshop: Overseas Customers:
Machines Being Exported:
FAQ:
1.What is your delivery time?
All the machines will be produced according to the order. Usually in 30 working days, depends on your projects.
2.What about installing in customer factory?
After the machines arrive at your factory, we can arrange engineer to install the machines and train your workers.
3.What is the guarantee time?
We offer a one-year warranty and a lifetime after-sales service.

---
