System characteristics MODULAR DESIGN: Radar Telecommunications Systems and mechanical structures are Modular design. Only need to replace the antenna and back-end Signal Processing Algorithm, update the configuration of the integrated management software system can be suitable for a variety of switching mode. All solid state, all coherent portable surveillance radar: Using Ku band all solid state Fourier transform modules, fractional order digital signal processing technology. Small signal detection in strong clutter background: According to the characteristics of radar clutter and target Echo, the adaptive clutter suppression Algorithm, adaptive target matching algorithm and pre-detection tracking algorithm are used to design the system. Automatic, ALL-WEATHER WORK: The radar system can be unmanned, reduce the difficulty of work, and avoid electromagnetic radiation interference to operators, with flexible deployment, automatic, all-weather work characteristics. Adaptable: the Product is integrated design, small size, light weight, can be mounted on a vehicle, tripod, fixed installation, suitable for important assembly, local integrated defense and other applications. Technical parameters

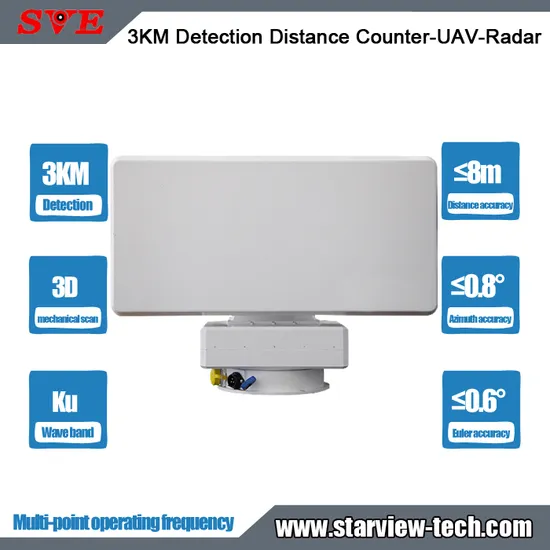

| Model | Radar-01B |
| Main technical Specification |
| Band | Ku (16.01GHz~17.018GHz) |
| Detection Range | ≥3km(UAV RCS=0.01m2) (False alarm rate:10-6, Detection probability: 95%, Refresh rate:6S) |
| Velocity range | 1-60m/s |
| Blind area | ≤150m |
| Detection Range | Azimuth: 0~360°, Pitching: 0~40° |
| Number of targets | ≥200 |
| Resolution | Azimuth: ≤2.5°; Pitching: ≤6°; Distance: ≤15m |
| Precision | Azimuth: ≤0.6°(1σ); Pitching: ≤0.8°(1σ); Distance: ≤10m(1σ) |
| Self-test ability | Work Status Monitoring of real-time subsystem |
| Communication Protocol | UDP |
| Transmitting power | Average power: ≤10W; Top power: ≤80W |
| Complete power consumption | Average power: ≤160W |
| Turntable speed | 3r/min ~12r/min Settable |
| POWER | AC220V/50Hz |
| Size | ≤560mm×280mm×470mm (Length* width *height) |
| Weight | ≤23kg |
| Environmental adaptability |
| Operating temperature | −40ºC~+60ºC |
| Storage temperature | −50ºC~+65ºC |
| Protection level | IP65 |
| Working Humidity | 95%±3%(30ºC, No Dew) |
| Wind Resistance | <45m/s(When there's a Radome) |
| Reliability | (MTBF) ≥1000h |
| Maintainability | (MTTR)≤60min(Field replaceable parts) |
| Electromagnetic compatibility | The radar equipment Electromagnetic compatibility meets the industry Electromagnetic compatibility standards for radar products |
| Security |
| 1.Electromagnetic radiation conforms to the requirements of national standards. |
| 2.The radar equipment has certain lightning protection ability, and the reliable lightning protection measures should be taken when the outdoor high place is erected. |
| 3.The power supply of radar equipment has surge protection function. |
