Dialead Marble and Granite Stone Double Directions Saw Bridge Cutting Machine

Product Description

Product Description
DIALEAD is the top stone machine and stone tools manufacturer in China with a history of more than 20 years.

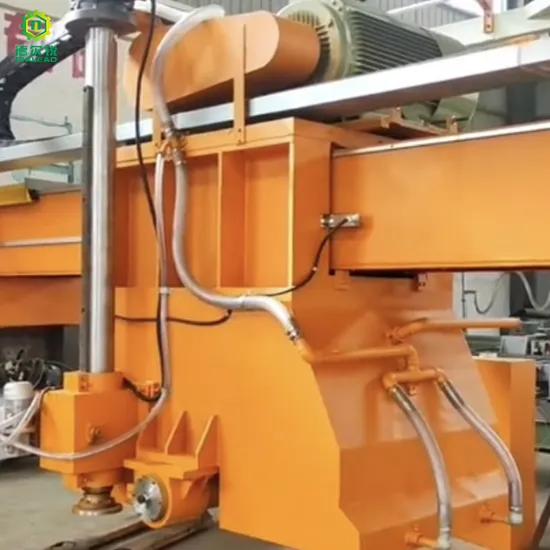

Dialead Double Directions Granite Block Cutting Machine adopts the structure of large span bridge, feeding the multi-stage transmission, frequency control of motor speed, and lift adopts mechanical transmission, shard before and after adopting high precision lead screw and nut, spindle power head adopts dual axle gear train, the level of knife lift guide pillar using cylindrical guide rail, hydraulic automatic feed, the control system adopts PLC programmable control system and human-machine interface, lifting, feeding, shard adopt high precision encoders count, ensure the machine cutting precision, durable and reliable. Lifting large stroke, cutting directly on the root of the plate, according to the need of layered cutting, so as to avoid the trouble of manual unloading, improve efficiency.This machine has the advantages of high cutting efficiency, high splicing precision, good flatness, high stability, simple operation and so on, especially suitable for high-value granite. The cutting of raw marble.Note:If the production process needs, the user can add 360 rotary table.

Technical Data
All technical data can be customized to meet your specific needs.

Model	DLSXQ-1200	DLSXQ-1600
Vertical stroke of blade (mm)	Φ1200	Φ1600
Max. cutting dimension (LxW)	3800*2100mm	3400*2100mm
Max.vertical Stroke	1350mm	1350mm
Main motor power (kw)	55kw	55kw
Crossbeam length	7260mm	7260mm
Power requirement	3 Phs 380V 50Hz, other is available	3 Phs 380V 50Hz, other is available
Water consumption (cbm/h)	10	10
Diameter of horizontal blade	D400-D600	D400-D600
Main motor power for horizontal blade (kw)	11kw	11kw
Vertical stroke of horizontal cutting column(mm)	850	850
Overall dimension (mm)	7400*3800*6100	7400*3800*6100
Approx. Weight (kg)	9000	9500

Required Tools
Packaging & Shipping

Company Profile
Quanzhou Dialead Stone Machinery Co., Ltd. is a high-tech enterprise founded by Dialead Stone Tools, together with several domestic well-known engineering colleges, stone machinery technicians and software system companies. Dialead Stone Machinery main products include five-axis bridge cutting machine, four-axis bridge cutting machine, stone copying machine, baluster machine, engraving machine, block cutting machine, polishing machine and etc. With constant technology innovation, stone processing industry has now developed to intelligent automatic processing from initial rough processing. Dialead is always devoted to the improvement of its technology and making contribution to the development of the industry.
Engaged in the production of stone tools (diamond segment, saw blade, engraving knives, stone polishing abrasives) for more than 20 years, Dialead has a good knowledge of stone tools and specific needs of different markets. When it comes to stone machinery, Dialead can well match its stone machines with its stone tools to achieve the best processing effect. This is what tells Dialead apart from other stone machinery suppliers in China.
With complete R & D and production system, Dialead is seeing its sales map bigger and bigger. For domestic market, Dialead Stone Machinery has set up offices in many cities. For international market, Dialead products are exported to more than 60 countries and regions, such as Russia, the United States, Ukraine, Kazakhstan, India, Poland, Jordan, Oman and etc.
Dialead attaches great importance to intellectual property and certification in its development. Dialead has obtained more than 30 patent and more is in the way. All Dialead machines are CE certified to make sure all details meet international standards.
