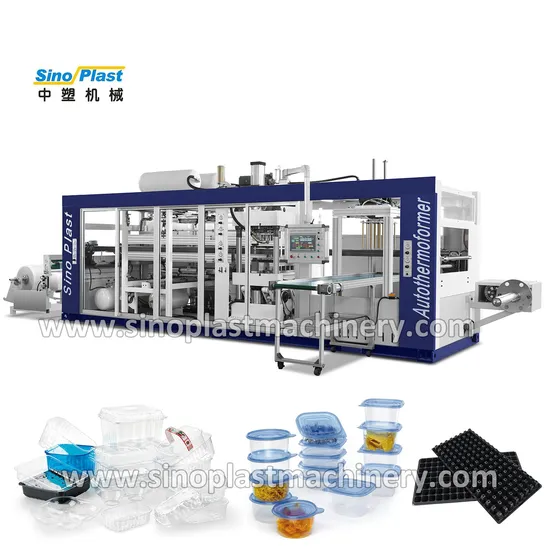

3 in 1 4 in 1 Plastic Clamshell Package Fruit Egg Tray Box Seedling Tray Electronic Tray Lid Plate Flowerpot Thermoforming Vacuum Forming Making Machine

Product Description

3 in 1 4 in 1 Plastic Clamshell Package Fruit Egg Tray Box Seedling Tray Electronic Tray Lid Plate Flowerpot Thermoforming Vacuum Forming Making Machine

Usages:
This machine can make various kinds of products with PP, PS, PET, PVC sheet, such as lids, trays, clamshell containers, bowls, etc.
Main Technical Parameter:

Model	SP-760A	SP-760B	SP-760C
Max. Forming Area	760X540mm
Max. Forming Depth	125mm
Suitable Material	PLA, PET, PP, PS, PVC, OPS Biodegradable Sheet
Sheet Width	450-850mm
Material Thickness Range	0.15-2mm
Max. Sheet Roll Dia.	1200mm
Running Speed	15-35cycles/min
Heating Power	8*10+10*8=160*800W=128KW
Sheet Index	4.4KW Servomotor
Plug Assist	7.5KW Servomotor
Lower Forming Station	11KW Reducing Motor
Lower Hole Punching Station	/	/	11KW Reducing Motor
Lower Cutting Station	11KW Reducing Motor
Air Pressure	0.7Mpa
Air Consumption	2000 Liters/min
Cooling Water Consumption	10 Liters/min 15° - 20°C
Power Voltage	380V, 50HZ, 3P
Approx. Machine Dimension (L*W*H)	10500×4550×3000	11500×4550×3300	13500×4550×3300
Approx. Machine Weight	1300kg	17000kg	21000kg

Thermoforming Samples:
Please contact with me to get quotation of our machines with details specification!

---
