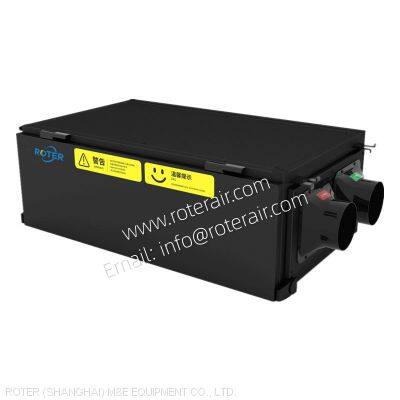

Fresh Air Dehumidifier
General Features:
◆ Multiple product lines are available for different use cases, and all series adopt Panasonic brand compressor
※FDC-F for fresh air dehumification
※FDC-M for fresh air dehumification and mixed with return air
※FDC-H for fresh air dehumification and energy recovery
◆ Multiple filteration and purification protection of indoor air quality, can effectively remove particulate matter, microbes, bacterium, waste gas, and eliminate Odol:
※1st Stage: Primary filter: absorbs large particles and hair
※2nd Stage: Medium efficiency filter: filter 97% PM2.5 particles; filter large particles and hair; efficiency: F7
※3rd Stage: HEPA filter: filter 0.1um particulate matter, and 99% PM2.5 particulate matter; efficiency: H13
※4th Stage: Anion sterilizer: known as "air vitamins", can freshens the indoor air
※5th Stage: UV sterilizing lamp: effectively sterilization and purification
◆ AC motor , EC fan and BLDC motor are for option
◆ Different air sensors are available for choice, including CO2 sensor
◆ Bypass function is optional for FDC-H series: Bypass damper can be added to automatically switch the working modes
Products Series:
(1). Single-way Fresh Air Dehumidifier (280 / 380 / 500 / 950 / 1200 / 2200 / 2580 / 4300 / 5300m3/h)
The FDC-F series products adopt the principle of cooling dehumidification. By reducing the temperature of the air, the excess moisture in the air will be extracted, and then adjust the air to comfortable temperature and humidity by the reheating system.
FDC-F is especially suitable for for places needing fresh air meanwhile the fresh air needs to be dehumidified, or it can be used in a specific place for internal air circulation use, or used as a fresh air ventilator in a special place (such as spray booth, harmful gas).
After the wet air is purified and dehumidified, it can also be used as the equipment of the fresh air and positive pressure system. The long-term positive pressure fresh air can solve the problem of bacterial growth and humidity in the place, meanwhile ensure a sufficient oxygen supply.
Dehumidifying condition: 30°C / 80%
(2). Double-way Fresh Air Dehumidifier (280 / 380 / 500 / 950 / 1200 / 2200 / 2580 / 4300 / 5300m3/h)
The FDC-M series products adopt the principle of cooling dehumidification. By reducing the temperature of the air, the excess moisture in the air will be extracted, and then adjust the air to comfortable temperature and humidity by the reheating system.
FDC-M has fresh air inlet and return air inlet, so, the latent heat of the outdoor fresh air is dehumidified and can be mixed with the indoor return air, then the mixing air is supplied to the room through 3 stages filtration (G4 + F7 + H13), aimed to reduce the indoor humidity.
FDC-M is especially suitable for systems that need to introduce dry air, or places with positive pressure requirements. Long-term positive pressure fresh air can solve the problem of bacterial growth and humidity of the place, and ensure sufficient oxygen supply.
Dehumidifying condition: 30°C / 80%
(3). Double-way Energy Recovery Dehumidifier (280 / 380 / 500 / 600 / 1200m3/h)
The FDC-F series products adopt the principle of cooling dehumidification. By reducing the temperature of the air, the excess moisture in the air will be extracted, and then adjust the air to comfortable temperature and humidity by the reheating system. Meanwhile, FDC-F series products are installed with plate heat exchanger, so, it also can recover the energy from exhaust air then transfer to fresh air then supply into room, this makes the FDC-F can achieve energy-saving for air conditioning systems.
After passing through the G4 + F7 + H13 filters, The wet fresh air is sucked into the unit by the fan blower. And the moisture of the fresh air condenses to water and is collected into the drain pan then discharged out when it passes through the cooling coil, this process achieves the dehumidification. Meanwhile, the dry air is supplied into room, and the dirty air of the room is finally discharged to the outside too after energy recovery.
Dehumidifying condition: 30°C / 80%
>>
