China Automatic Hydraulic Staple Pin Making Machine Professional Manufacturer

Product Description

WVT industries

based on values of integrity-based,quality foremost,customer-oriented,service priority

we always work hard to make and supply quality innovated products by our professional,preciseness,enthusiasm and patience.

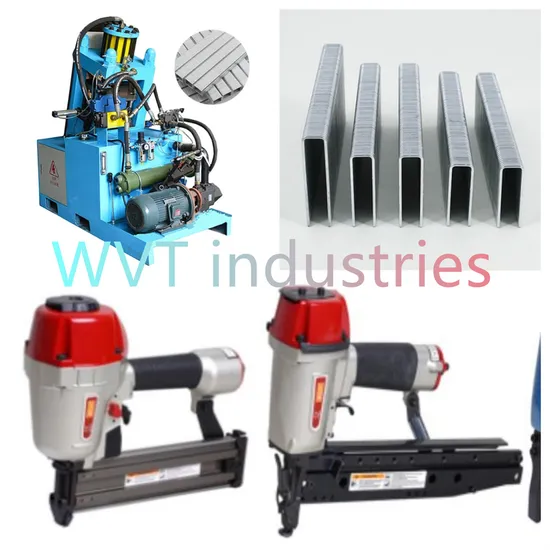

staple pin making production line
including,
stape pin making machine
water-tank wire drawing machine/wire flattener
wire gluing machine

1.1 stape pin making machine

model	U-J
wire dia&qty./trip: J nail :0.9mm&100pcs/strip
speed	80-130pcs/min.
power	5.5kw
weight	1500kg
dimension	1900*1900*1500mm

U-J staple pin size:
10 width : 1006J,1008J,1010J,1013J,1016J
04 width : 408J,410J,413J,416J,419J,422J

model	U-K	U-N
wire dia.&qty/strip	1.18mm&80pcs/strip	1.47mm&68pcs/strip
speed	80-130pcs/min.
power	7.5kw
weight	1500kg
dimension	1900*1900*1500mm

-U-K staple pin size :
422K,428K,432K,438K
-U-N staple pin size:
(N13)825, (N15)832, (N17)838,
(N19)845, (N21)850

model	F	T
wire dia.&qty/strip	1.02mm&100pcs/strip	1.4mm&80pcs/strip
speed	100-140pcs/min
power	7.5kw
weight	2000kg
dimension	1900*1900*1500mm

-F staple pin size: F10,F15,F20,F25,F30
-T staple pin size: T38,T50

1.2 wire flattener machine
is used to change raw materials(galvanized iron wire)diameter and shape

model	WF-2
wire dia.	2.0-0.68mm
speed	10
power	22kw
weight	2000kg
dimension	3200*1500*900mm

1.3 wire gluing machine
to bond fixed width wire together
by using 2 times glue A and 1 time glue B
on the surface of wire, then dry glued wire

model	C-5
combining width	50-150mm
speed	2-18m/min.
power	12.7kw
weight	1500kg
dimension	21000*900*1500mm

2. application
--packing industry for making carton,pallet,wooden case etc
-house decoration
3. machine advantages
--integrates to use latest technology of
mechanics,hydraulic and pneumatic,
transmission,computer control system
--famous brand, component
such as:Mitsubishi PLC,Taiwan feeder
--mould is accuratly and stably fixed
spring guide pillar to ensure nail quality.

4. our advantages
-insist on ideas of integrity-based,quality foremost,customer-oriented,service priority
-bring you quality innovated products by our professional,preciseness,enthusiasm and patience.
-provide installation,debugging and training service if need
-life long after sales service is availble forever
-any questions about machine,we will provide quick-response technology service on line or on site
-any parts broken from quality reason in 1 year warranty ,we also will supply spare parts replacement free of cost

5. payment terms
T/T,LC,western union or others

6. delivery details
-delivery time:15-20 working days
-delivery port: shanghai port or others,China
-package style: in wooden cases
7. contact
Mr.JagyWoo
Website: wvt-industries.en.made-in-china.com

WVT industries

based on values of integrity-based,quality foremost,customer-oriented,service priority

we always work hard to make and supply quality innovated products by our professional,preciseness,enthusiasm and patience.

---
