DC Brush Gear Motor Micro Electric Induction AC Gear Motor

Product Description

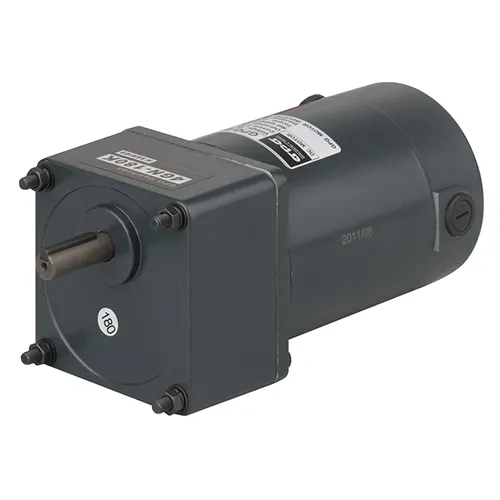

DC Brush Gear Motor
G	DM	08	69	118
Enterprise Code	Motor Type	Outer Diameter	Cover Model	Outer Length
G - GPG	DM - DC Motor	60 - 60 × 60 70 - 70 × 70 80 - 80 × 80 90 - 90 × 90 104 - 104 × 104	55 - 55mm 62 - 62mm 69 - 69mm 80 - 80mm 90 - 90mm 104 -104mm	70-70mm 75-75mm 79-79mm 86.5- 86.5mm 99.5- 99.5mm 105-105mm	118-118mm 122-122mm 140-140mm 165-165mm 167-167mm 175-175mm
60	S	P	B	12	18
Power Capacity	Mounting Face	Motor Shaft Shape	Accessories	Voltage	Speed
10W 15W 20W 25W 30W 35W 40W 60W 90W 120W 150W 180W 200W 250W 300W 350W 400W	R - Round Flange S - Square Flange	P: Cylindrical Shaft C: Gear Shaft	H - Feet Seat B - Brake Magnetic	12 - DC 12V 24 - DC 24V 110 - DC 110V 220 - DC 220V	15 - 1500 18 - 1800 22 - 2200 32 - 3200

Model	Gear Box	Rated Power	Voltage	Amp	Speed	Turning Moment	Shell Diameter	Motor Height
		W	V	A	r/min	mN.m	mm	08	09
GDM08-80SP GDM08-80SC GDM09-80SP GDM09-80SC	4GN 5GN	40	12	6.10	1500	254.60	Φ80	118	122
					1800	212.00
					2200	173.60
	Optical Axis		12	6.10	3200	119.40
	4GN 5GN		24	2.78	1500	254.60
					1800	212.00
					2200	173.60
	Optical Axis		24	2.78	3200	119.40
	4GN 5GN		110	0.61	1500	254.60
					1800	212.00
					2200	173.60
	Optical Axis		110	0.61	3200	119.40
	4GN 5GN		220	0.30	1500	254.60
					1800	212.00
					2200	173.60
	Optical Axis		220	0.30	3200	119.40
	4GN 5GN	60	12	9.10	1500	382.00
					1800	318.50
					2200	260.50
	Optical Axis		12	9.10	3200	179.10
	4GN 5GN		24	4.20	1500	382.00
					1800	318.50
					2200	260.50
	Optical Axis		24	4.20	3200	179.10
	4GN 5GN		110	0.91	1500	382.00
					1800	318.50
					2200	260.50
	Optical Axis		110	0.91	3200	179.10
	4GN 5GN		220	0.45	1500	382.00
					1800	318.50
					2200	260.50
	Optical Axis		220	0.45	3200	179.10

Taibang Motor Industrial Group Co., Ltd. is a professional manufacturer which combined with series gear transmission products of design, manufacture, and sale promotion.
• occupied more than 30,000 square meters, had more than 1000 workers, and more than 200 sets of advanced equipment,
• operated strictly according to ISO9000 Quality management system.
• provide you with more than just high-performance products, more industry users tailored package of application solutions,
• based on corporate issues, to provide users with the most suitable products, the most suitable solution.
• Lead customer innovation through the products and service, help the customer realize the maximum benefit.
• 1995: Taibang Company and the Ministry of Aerospace, Peking University,
and scientific research experts jointly established a micro-micro motor manufacturing company
• 2000: Taibang established a branch in Yueqing, Zhejiang
• 2005: Zhejiang Taibang Motor Industry Co., Ltd. established Dongguan Taiwan State-owned Industrial Co., Ltd.
• 2012: Established Shanghai Taibang Automobile Co., Ltd.
• 2014: Approved the new factory site of the second phase of the Yueqing National Economic Park in Zhejiang Province,
which is expected to be completed and put into operation in 2018
• 2018: A new 120,000 square meters automated production base

---
