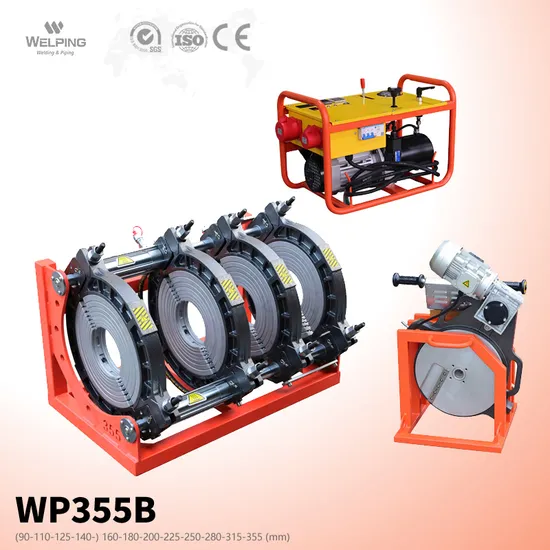

Hydraulic Butt Fusion Welding Machine for Poly Pipes 160-355mm ISO9001/CE/SGS Source Factory, Supporting OEM/ODM 20 Years of Experience

Product Description

Product Parameters

Model		WP355B
Suitable materials		PE, PP, PVDF
Welding range		160-180-200-225-250-280-315-355mm
Power supply		220V,1PH/380V,3PH
Frequency		50 Hz
Total power		5.45 KW
Heating plate		3.6 KW
Planing tool		1.1KW
Hydraulic station		0.75 KW
Max.Pressure		16MPa
Hydraulic oil		L-HM46
Cross-sectional area		20.00cm²
Max.Temperature of heating plate		270ºC
Temp.Deviation in Surface		±5ºC
Total Weight		218kg
Net weight		198kg
Basic Frame	plywood	910*600*640mm
Hydraulic Unit & Planing tool & heating plate	plywood	840*680*700mm

Product FeaturesFrame:1. Integral welded base2. 8mm thick steel plate and 5×5cm steel square pipes3. Die-casting aluminum rings and reducers4. Metal handle and rubber wheels5. Chromed cylinders and shafts6. Hydraulic quick couplersHeater:1. Bakelite handle with high insulating property and thermal insulation2. Built-in heating element3. Aviation plug4. Non-stick coating5. Die-casting plateTrimmer:1. Die-casting frame and rotary plate2. Universal motor with powerful torsion3. Gear drive, efficient and maintenance-free4. HSS cutting blade5. Separate switch preventing misoperationHydraulic Station:1. Enclosed design2. Siemens contactors3. Temperature controller, timer, pressure gauge, etc4. Relief valve, directional valve, overflow valve5. 1.1kW motor and CBK pumpApplications
Company ProfileCustomization
Customer visitsEXhibitionCertificationGeneral Terms
1. PAYMENT
We accept a 30% TT deposit and a 70% balance payment against the photo before delivery or 100% TT in advance.
2. LEAD TIMEWELPING can finish in around 10-15 days for standard and light OEM items.
3. WARRANTY
18 Months from delivery we take full responsebilityfor for parts with quality problems and provide them for free requirements
4. CUSTOMIZED DESIGN
Our experienced technical team can develop different solutions according to customers. MOQ is required for special requirements.
5. ABOUT AGENCY BUSINESSWelcome customers with sincerity and influence to discuss cooperation matters with us.

---
