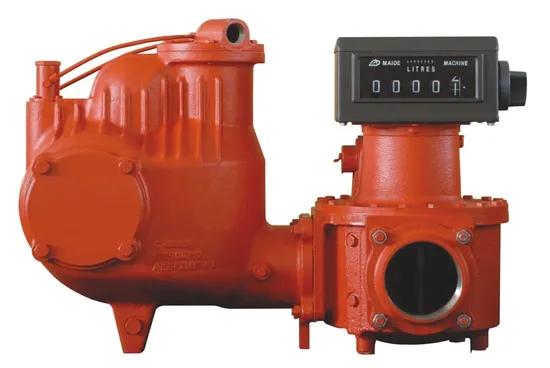

3 Inch Mechanical Oil Meter Positive Displacement Fmc-50 Flowmeter High Preset Function

Product Description

Product Description
Advantage:FMC series rotary van meters are single case, angle-type, rotary vane, positive displacement meters.Superior accuracy and wide range of products from gasoline to kerosene to fuel oils can be meters.Compact, versatile design can be readily fit into nearly all installations.Low pressure loss, a true gravity flow meter.Long service life, low friction ball bearing, fixed cam-type shaft construction give sustained accuracy and long time operation.

Model	M	FMC	SM
Size	2" 3" 4" 6"	2" 3" 4"	2" 3" 4"
Max. flow rate	3000L/min	1500L/min	1300L/min
Min. flow rate	25L/min	35L/min	130L/min
Accuracy	±0.2%	±0.2%	±0.2%
Repeatability	±0.2%	±0.2%	±0.2%
Max. viscosity	1000CPS	1000CPS	1000CPS
Max. operating pressure	3.4MPa	1.8MPa	1.8MPa
