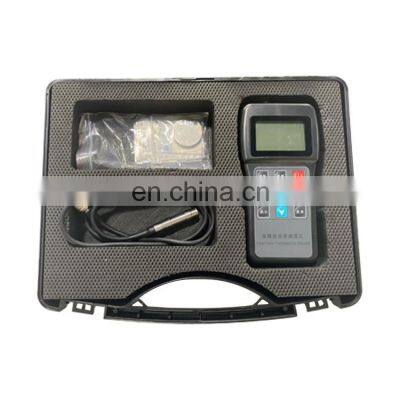

Product DescriptionT100 Coating Thickness Gauge is an economical and practical portable thickness measuring instrument. It uses magnetic and eddy current thickness measurement methods to measure the thickness of non-magnetic coatings on magnetic metal substrates and non-magnetic metal substrates. The thickness of the non-conductive cover layer; it can quickly and accurately measure the thickness of coatings and coatings without damage. It can be used in the laboratory and engineering field. By using different probes, you can also meet the needs of a variety of measurements. This instrument can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields. It is a professional instrument for material protection.SpecificationsT100Probe selectionOptional 10 probesF1(Paint/Plating/Fire-resistant layer and 10mm inner cover)Other probes: F400,F1/90°,F5,N400,N1,N1/90°,CN02,N10Working principleMagnetic induction and eddy currentMeasurement accuracyF1(±((1~2)%H+1)), F10(±((1~3)%H+1)), N1(±((1~2)%H+1))Measuring rangeF1(0~1250um), F10(0~10000um), N1(0~1250um)Minimum curvatureF1(3mm),F10(10mm),N1(4mm),F400(1mm)Minimum areaF1(Φ7),F10(Φ40),N1(Φ5),F400(Φ3)Measurement methodContinuous measurement method, single measurement methodStatistics functionMean, Large, Small, Tests,Standard DeviationCalibration methodSingle-point calibration,two-point calibration,and five-point basic calibration method to correct the system error of the probeStorage functionCan store 495 measured values,with delete function:delete single suspicious data appearing in the measurement, or delete all data in the storage area for new measurementAlam systemLinits can be set: automatic alarming for measured values outside the limits; with power undervoltage indication function; beepprompts during operation; with error prompt function, error prompts can be displayed on screen or by beepsShutdown methodManual shutdown mode and automatic shutdown modeUse environment0~40℃/ humidity: 20%RH~90%RHUse environmentMagnetic field-free environmentPower supplyTow AA batteriesThe standard configurationMain unit 1 set/probe 1 set/ stan dard piece(5 pirces)/iron or aluminum base 1 piece/ 5 AA battery 2 sections/manual certificate warranty card 1 setCompany ProfileCangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment. Production and WorkshopIt also has warehouse, be assured for sufficient supply. We are continuing to design and produce new production to satisfy customers’ request. Welcome to visit us for business negotiation!Hot SalesCertificationsCustomer PhotosPacking and ShippingFAQQ1:Are you a factory or trading company?A:We are a factory specializing in manufacturinf all kinds of tester.Q2:Where is the loading port?A:Qingdao port or tianjin port.Q3:What’s the MOQ of the product?A:Different item has different MOQ.normally one stand is preferred.Q4:What certificates do you have?A:We have ISO 9001.Q5:Do you have an OEM service?A:Yes.We can provide OEM and ODM services as your requirements.Q6:How long is the production cycle after ordering?A:General it is about 7-20 days.Q7:What is the payment method?A:T/T payment is preferred and other payment terms is accepted.
>>
