Basic Info.
Structure
Vertical Drilling Machine
Controlling Mode
Artificial
Automatic Grade
Automatic
Certification
CE, ISO 9001
Dimension(L*W*H)
780*450*280mm
Max. Drilling Dia. (mm)
16
Range of Spindle Speed(r.p.m)
180 - 2770 r.p.m
Production Capacity
20000 Piece/Pieces Per Month
Product Description
Product Description

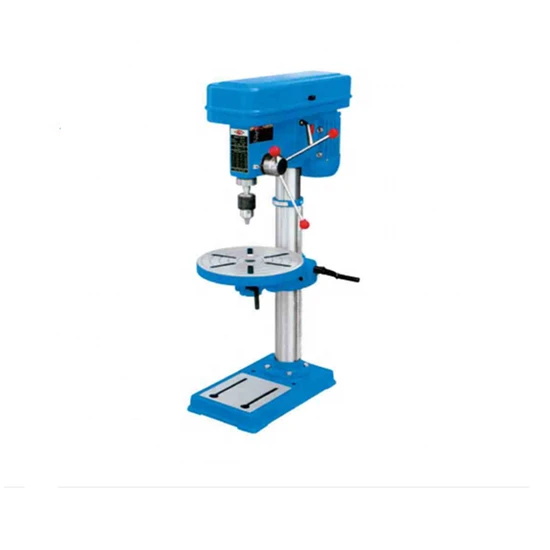

HY5216B-I bench stand drilling machine press drill
Quick Detail:
Drilling Capacity: 16mm
Spindle Taper: MT2
Worktable Size: 290 x 290 mm
Motor Power: 550 w
Description:
HY5216B-I Electric drill press power tools belong to one of our most economic electric drill press power tools. It is new
condition not electric drill press power tools. And it is small in size and delicate in design. This electric drill press power
tools is made in China, but it have same quality with Korea drill press. The main features are as below:
1. Cast-Iron table, base & head
2. Adjustable depth stop with gauge
3. Smooth table movement with quick lock
4. Adjustable, impact-resistant guard
5. Comfortable handle
Specification
Drilling Capacity
| 16mm
|
Motor Power
| 375/450/550w
|
Swing
| 325 mm
|
Spindle Taper
| MT2
|
Spindle Travel
| 80mm
|
Number of Spindle Speeds
| 16 Steps
|
Spindle Speeds 50/60HZ
| 180-2770/220-3320rpm
|
Column Diameter
| 72 mm
|
Height
| 980 mm
|
Worktable Size
| 290 mm
|
Base Size
| 420 x 250mm
|
Net / Gross Wieght
| 42 / 45 kg
|
Packing Size
| 780 x 450 x 280 mm
|
Package Details
Company Profile
Shanghai Hystrong Industrial Co.,Ltd. With twenty years experiences in manufacturing & exporting machine and tools, we have enjoyed considerable good reputation from our customers over the world because of the high quality and first-class after sale service.
To guarantee the quality,we produce the industrial tools from carefully selected raw material and with advanced manufacturing equipment.
We bear in mind that consistent high quality products are crucial to the ongoing success of operation. With our extensive
applications knowledge we can engineer the tools to the most exacing need.
Certifications
FAQ
1.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
2.Q: What is your delivery time?
A:Usually, one machine takes 20-40 days. If we have in stock, we can arrange
shipment as soon as we receive the payment.
3.Q:Where is your factory?Can we go to your factory and learn how to use the machine?
A:Our factory is loacted in yancheng,jiangsu Province.
We sincerely welcome you come to our factory.
4.Q: Do you have CE certification?
A:yes, we have CE certification, machine quality is guaranteed.
5.Q:Can you accept OEM order?
A:Sure,we accept OEM with your logo print on the machine and package with your design.
