Sunward Swe215f 22 Ton Digger 21.5 Ton Building Mining Construction Crawler Excavator in Stock

Product Description

Product Description

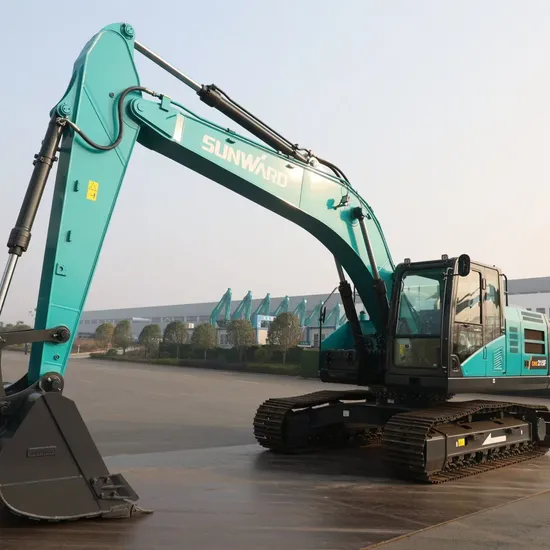

New SUNWARD 21 Ton Crawler Excavator SWE215F Hydraulic Mining Excavator
1. National three emission engine
The new engine in line with the national three emission regulations is adopted, which is more energy-saving and environmental protection.
2. Optimize mining scope
The boom and oil cylinder are optimized reasonably, and the excavation and unloading height is greatly increased to meet the requirements of different working conditions.
3. The pipeline layout of working device is beautiful and reliable
A more reasonable pipeline layout can reduce the pipeline wear probability, and the qualified rubber hose with 1 million pulse tests is used to improve the reliability of the hose. Strengthen the working device through FEM (finite element analysis) and long-term durability test.
4. Increased capacity fuel tank
Longer continuous working time and more outstanding endurance.
5. Complete set of KYB hydraulic components, continuously optimized hydraulic system
By optimizing the throttle of multi-channel valve core, the comprehensive loss of the circuit is reduced by 30%; The high
efficiency main valve with independent intellectual property rights developed by Shanhe has also achieved 18% efficiency
improvement after being applied on small excavators.
Detailed Photos

Product Parameters

Bucket capacity		m³	0.95
Operating weight		kg	21300
Dimension parameters	Wheel spacing	mm	3465
	Total track length	mm	4220
	Ground clearance of platform	mm	1060
	Platform min. slewing radius	mm	2750
	Boarding width	mm	2710
	Gauge	mm	2200
	Chassis width	mm	2800
	Track width	mm	600
	Chassis clearance from the ground	mm	470
	Total height	mm	2965
	The height of the boom during transport	mm	3045
	Transport length	mm	9590
Working range	Max. digging height	mm	9740
	Max. discharging height	mm	6980
	Max. digging depth	mm	6690
	8 feet horizontal digging depth	mm	6500
	Max. vertical digging depth	mm	6040
	Max. digging radius	mm	9950
	Max. digging reach at ground level	mm	9785
	Min. slewing radius	mm	3530
Engine	Brand		Top Brand
	Rated output power	kW/rpm	110/2100
Max. digging force (bucket rod)		kN	110
Max. digging force (bucket)		kN	154
Driving speed (high/low)		km/h	4.9/3.1
Slewing speed		rpm	11.8
Ground specific pressure		kpa	43.2
