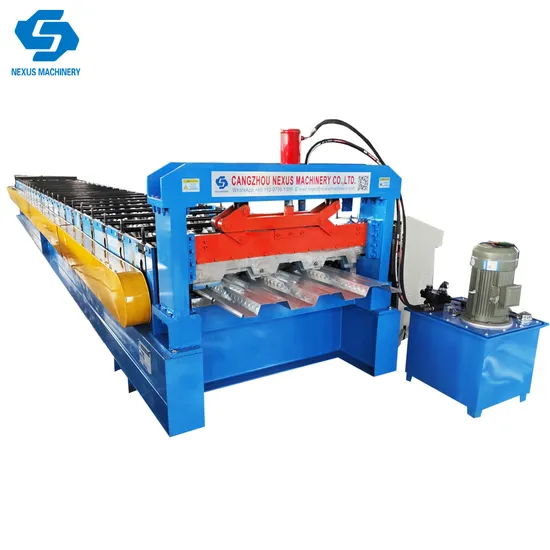

Nexus Floor Decking Sheet Roll Forming Machine with CE Certificate

Product Description

NEXUS Floor Decking Sheet Roll Forming Machine with CE Certificate NEXUS Floor Decking Sheet Roll Forming Machine with CE Certificate is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling the coil, continuous rolling and cold-forming, automatically cut to the size and output the finished panel. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.

1. Processing flow diagram of machine:
Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table
2. Profile Drawings for Reference:
3. Technical parameters for Machine:

No.	Type		specification
1	Row Material	Type	Color steel plate, galvanized plate, aluminum plate
		Feeding width	1220mm
		Thickness	0.8-1.2 mm
		Effiect width	1000mm
2	Main body	Forming roller station	26 Stations
		Diameter of shaft	90mm
		Shaft material	40Cr, Numerical Control Machining To HRC28-32, Then Polishing and Hard Plating
		Roller material	GCr15# Steel , Heat Treatment to HRC58-60,Then Polishing and Hard Plating
		frame	400mm H Steel
		Frame thickenss	20mm
		Working speed	8-12 m/min
		Size (L*W*H)	About 15200*1850*1510mm
		Weight	About 16.5 tons
3	Power	Motor power	11KW+11KW
		Hydraulic power	5.5KW
		Voltage	380V 50Hz 3phases or Customerization
		Drving Way	By Chain
4	PLC Contro System	Language	English and Chinese
		Brand Of PLC	Delta brand (Touch Screen )
		Operation	Manual and Automatic (Two Type)
		Transducer	Delta brand
5	Cutting Device	Cutting Type	Hydraulic Cutting
		Blade of Cutting	Cr12 , quenching treatment
		Cutting Tolerance	+ -1mm

4. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
5. Photos of NEXUS Floor Decking Sheet Roll Forming Machine with CE Certificate for Reference:
7. Why Choose US?
1. More than 20 years experiences in manufacturing roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.

---
