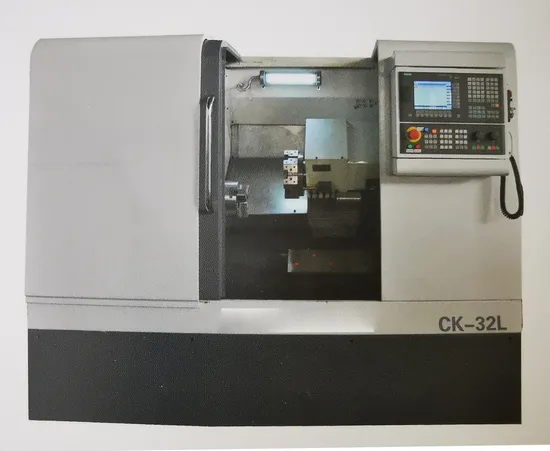

CNC Center Professional CNC Lather (with slanting rail 45°)

Product Description

Min.Order Quantity: 1 Set/Sets
Supply Ability: 200 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T
Quick Details
Condition: New
CNC or Not: CNC
Automatic Grade: Automatic
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Model Number: CK32L
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days

Items	Specifications
	CK-32L/36L	CK-40L	CK-50L
Max.swing over bed	Φ320mm /Φ360mm	Φ400mm	Φ500mm
Max.swing over carriage	Φ180mm / Φ210mm	Φ260mm	Φ360mm
Max.cutting length	500mm	520mm	750mm
Rail width	284mm	320mm	381mm
Spindle nose	A2-5	A2-6	A2-8
Spindle bore	Φ56mm	Φ62mm	Φ90mm
Taper of Spindle bore	MT6	MT6 or Φ70mm,1:20	Φ100mm,1:20
Chuck	6"	8"	10"
Range of spindle speed	150-4500rmp	100-3500rpm	150-3000rpm
X/Z a-xis travel	210/500mm	240/550mm	260/750mm
X/Z rapid speed	15/18m/min	15/18m/min	10/15m/min
X/Z screw	2510/3210mm	3208/4010mm	2510/4010mm
X/Z linear guide-way	25/35mm	35/45mm	30/45mm
Hydralldic turret	6 or 8	8 or 12	8 or 12
Max.section of tool	20x20mm	25x25mm	25x25mm
Stroke of tailstock sleeve	80mm	80mm	120mm
Diameter/Hole of tailstock sleeve	Φ60mm/MT4	Φ75mm/MT5	Φ90mm/MT5
Main moror power	4kw/5.5kw	7.5kw	11kw or 15kw
Coolant pump power	250w	250w	250w
Overall dimensions (LxWxH)	2570x1550x1750mm	2800x1800x1800mm	3100x1880x1900mm
Packing size (LxWxH)	3000x1750x2100mm	3100x2000x2100mm	3300x2050x2150mm
Net weight	2000kg / 2200kg	2900kg	4300kg
Groos weight	2250kg / 2450kg	3300kg	4700kg

CNC Lathe Machine Characteristics:
CNC machine tool is the abbreviation of digital control machine tool, which is an automatic machine tool with program control system. The control system can logically process and decode the program with control code or other symbolic instructions to cause the machine to operate and machine the part.
Compared with ordinary machine tools, CNC machine tools have the following characteristics:
1. High processing precision and stable processing quality;
Multi-coordinate linkage can be performed to process parts with complex shapes;
2. When the machined parts are changed, generally only need to change the NC program, which can save production preparation time;
3. The machine tool itself has high precision and rigidity, and can choose favorable processing amount, and the productivity is high (usually 3~5 times of ordinary machine tools);
4. The degree of automation of the machine tool is high, which can reduce the labor intensity;
5. Widening high stability bed
6.Two gear spindle speed, stepless in gear
7. Wider layor board
8. Intergrated automatic lubrication system.
Application:
CNC lathes are one of the most widely used CNC machine tools. The machine is suitable to process all kinds of small and middle-sized shaft and plate workpiece, and could also turn various threads, circle arc, circle cone, inside and outside surface of revolved body. and can be used for grooving, drilling, reaming and reaming. Holes and pupils, etc.This machine is widely used in sanitary, value, electrical appliance, instrument, automobile, motor cycle, bearing and so on.
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Vedio
We can provide on-site training and commissioning Vedio
We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before delivery)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.

---
