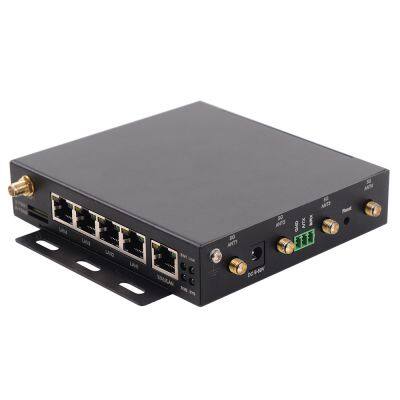

| Description | Dual sim 4 LAN 1 WAN 5g router industrial with watchdog |
| Item no. | HY870 |
| CPU | MTK7621 |
| Access authentication | Support CHAP/PAP/MS-CHAP/MS-CHAPV2/none |
| Network format | Support NR/LTE/WCDMA(HSPA+)/TD-SCDMA/EVDO/EDGE/GPRS |
| Lan protocol | Support ARP, Ethernet, STP |
| Wan protocol | Support static IP, DHCP, PPPoE, PPTP,L2TP |
| Max. users | 64 |
| IP application | Support Ping, Traceroute, DHCP server/wireless relay/client, DNS relay, dynamic domain name DDNS, Telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP, IPv6 |
| IP routing | Support static routing, IGMP Proxy |
| TTL | Customize client host TTL value |
| Firewall | Supports Stateful Packet Inspection (SPI) to prevent Denial of Service (DDoS) attacks Support filtering multicast/Ping packets, Access Control List (ACL) DMZ, MAC filtering, whitelist/blacklist access control Support NAT, PAT, DMZ, port mapping, virtual server |
| AAA | Support local authentication, Radius |
| Data safety | L2TP, PPTP, OpenVPN, CA |
| Data backup | Interface backup, 4G, wired or relay mutual backup when disconnected |
| Link online detection | 4G status detection, automatically redialing when disconnected or signal is poor VPN disconnection redial interval definition and dial-up times control The WAN end sends heartbeat detection packets for detection, and automatically connects when disconnected Scheduled restart |
| Bridge multiple gateways | Supports multiple LAN settings, the router has two gateways (two intranets) |
| DTU | Supports TCP, UDP transparent transmission mode, TCP Server mode, command mode |
| Python development | Python programs can be developed by oneself to realize the special functional requirements of the project for the router and greatly shorten the time from customization to deployment |
| Shell script | Custom script function to implement customized management of routers and related functions |
| System interface | The router provides a secondary development parameter interface (http), such as obtaining router status, setting router-related functions, etc. Convenient for mobile APP, applet, and cloud server development |
| Configuration method | Supports local or remote HTTP, HTTPS, Telnet, and SSH methods, and supports intranet penetration method |
| Upgrade method | Support local or remote WEB, TFTP, FTP, SFTP server, intranet penetration remote |
| Logs function | Supports local system logs and remote logs. Important logs are saved after power failure Support log saving after power failure |
| Ethernet interface | 5*10/100/1000Mbps ports |
| 6 pin terminal | RS232/RS485 x 1 industrial terminals RS232 signal：TXD, RXD, GND RS485 signal：A, B |
| Sim card slot | 2 |
| Antenna | SMA external rotation internal hole 3G/4G/5G network: SMA x 4 WIFI: 2.4G/GPS SMA x 1 |
| Reset key | 1 |
| Unit size | 117*129*28.4mm |
| Frequency | 5G NR NSA: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/ 78/79 SA: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/ 78/79 LTE LTE-FDD: B1/2/3/4/5/7/8/12/13/14/17/ 18/19/20/25/26/ 28/ 29/30/32/66/ 71 LTE-TDD: B34/38/39/ 40/41/42/43/ 48 LAA: B46 UMTS WCDMA: B1/ 2/ 4/ 5/ 8/ 19 GNSS: GPS/GLONASS/BDS/Galileo |
| LED indicator | SYS system running indicator light: Flashes once per second, indicating that the system is operating normally. Flashing quickly indicates that the firmware is being upgraded, or the reset button is being pressed to reset. Signal indicator light: Signal value below 30%: flash quickly Signal value 30-80%: flash once every second Signal value above 80%: always on 5G network indicator: always on when connected to the 5G network |
| Shockproof | IEC60068-2-27 |
| Vibration | IEC60068-2-6 |
| Fall | IEC60068-2-32 |
| Watchdog | support |
| Serial port transparent transmission | support |
| VPN server | PPTP Server, L2TP Server, OpenVPN Server |
| VPN client | PPTP Client, L2TP Client, OpenVPN Client, GRE Client, local IP address configuration |
| Other function | PPP, PPOE, DDNS, ICMP, VRRP |
| Base station positioning | support |
| Operating Environment | Operating Temperature: -20°C to +75°C; Storage termperature：-40°C to +80°C Storage Humidity：5%~ 95% |
