Quick Operation and Smooth Medium-Heavy Harvesters Automatic Cut Max 360mm Forestry Timber Harvest Head

Product Description

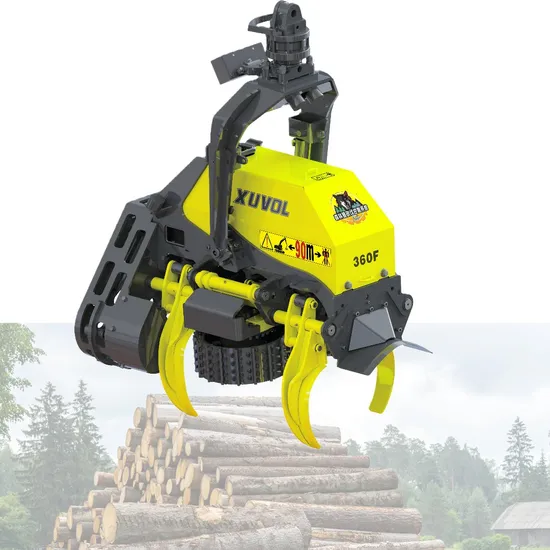

Forestry machinery Xuvol WYJ360F harvester attachments for excavator with free segment cutting forestry harvesting head
easy to operate and produces high quality logs
Xuvol Forestry harvester head is compact and lightweight, enabling smooth and quick operation even in dense forests.
It is built for extrem temperature challenge, it works just fine even when it snow, a all season machine.
WYJ-360F
1. Model: WYJ-360F Timber harvester head
2.Agile universal cutting head, wide range of applications
3.Excellent geometric structure design
4.Fast and powerful feeding system
Multifunctional control system
5.Easy maintenance and economical parts prices
6.Suitable for multi-path logging
7.Any length of cutting lengths can be selected with feeding rollers
Forestry machinery Xuvol WYJ360F harvester attachments for excavator with free segment cutting forestry harvesting head
Paramenters

chain Saw
Cutting diameter of chain saw (Max)	360mm
Length of guide plate	18mm
Chain pitch	0.404m
Chain oil tank capacity	4.5L
Feed
Quantity of rollers	2+ auxiliary tug
Roller diameter	371mm
Maximum opening of roller	400mm
Maximum feed force of roller	16KN
Maximum feed speed of roller	5-6m/s
Knives
Quantity of knives	2+1
Knife point environmental protection diameter	330mm

Advantages of the timber harvester head:

1. Outstanding performance
Computer version control, free setting of cutting length, more accurate segmentation cutting, automatic feeding, automatic debranching, blocking processing, flow self-adaptation, automatic chain saw tensioning, easier operation 2. Smooth operability Autonomous programming control system. Operation is more in line with the actual needs of felling and user operating habits:
3. Excellent working efficiency and economy
Targeted design, optimal host matching, High cutting efficiency and low fuel consumption.
4.Features of wood harvester
A. Maximum felling diameter 360mm
B. The cutting length is accurate and the efficiency is high:
C. High intelligence.

Xuvol log harvester head WYJ-360F could be installed on 90% brand of excavator Forestry machinery Xuvol WYJ360F harvester attachments for excavator with free segment cutting forestry harvesting head.

FAQ
1. Q:Are you manufacturer?
A:Yes, We are one of the leading mini excavator and excavator attachments manufacturer in China. With 15767m² factory area and 5 production lines.
2. Q:Do you offer OEM service?
A: Yes, We have a professional R&D team which ensure to make your idea turn into reality.
3. Q:How do you make sure the quality?
A:We pass CE and ISO Certificate, grapple products widely used on 90% of global excavator brands, exported to Japan, Vietnam, Indonesia, England and other countries.
Guangxi Xuvol Construction Machinery Equipment Co., Ltd. was established in 2014. On the base of Guangxi Nanning Woyuan Heavy Industry Machinery Equipment Co., Ltd., Xuvol is one of the biggest multi-functional excavator attachments manufacturer in China. Products include OEM grapples, mini excavator, timber harvester head etc. Our R&D Center and production line is located at No. 16, Anping Road, Guangxi-ASEAN Economic and Technological Development Zone, Total construction area is 15767m² including office building and specialized standard factory buildings. Xuvol is a key enterprise in the Guangxi-ASEAN Economic and Technological Development Zone, a national "high-tech enterprise", and also one of the top 100 China construction machinery parts brands. It has accumulated 3 invention patents , 5 appearance patents and 16 utility model patents. Xuvol has an experienced R&D and production team, using PLE, SLW and three-dimensional design and finite element mechanical to analysis, With CNC boring machine, vertical machining center, gantry machining center, plasma CNC cutting machine, laser cutting machine, three coordinates measuring instruments, welding robots, and environmentally-friendly painting lines, with the above advanced production and processing equipment, to guarantee the quality of products. Xuvol specializes in R&D and production of log grapples, mini excavators of 3.5 tons. At the same time, it develops and produces Woyuan series of excavator fixtures, digging and modifying rock drills, drilling and splitting integrated machines, mobile crushers, hand saws, logging machines and other construction machinery, Complete machines and attachments of forestry machinery and mining machinery. Xuvol offer OEM and ODM service. Our R&D team ensure to make your idea turn into reality. We firmly believe that quality comes from the trust of customers, and only by innovation. We can do the best in quality and integrity.

---
