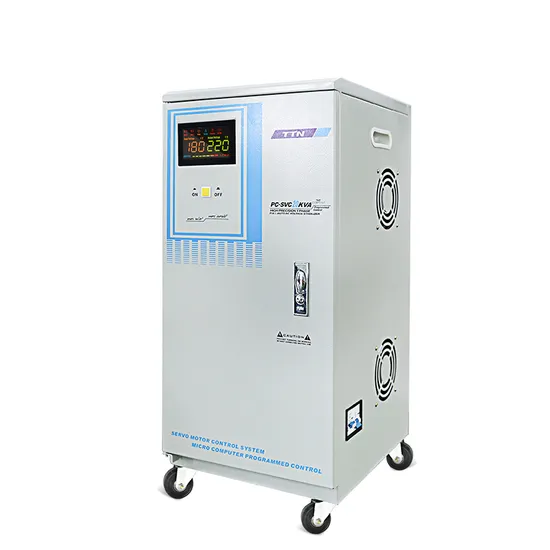

High Quality Servo Motor Control AC Automatic Voltage Stabilizer Pcsvc-15000va

Product Description

Advantages:
1.AC Automatic Voltage Stabilizer
2.LED Display:Display various protection data
3.Protection Function:Over Voltage Protect;Low Voltage Protect;Over Loading Protect;Over Temperture;Short Circuit Protect
4.Wide input voltage range
5.Efficiency more than 90%
6.No additional waveform distortion
Specifications:
1.Model:PCSVC-15000VA
2.Input Voltage:AC150V-260V
3.Output Voltage:220v±3% adjustable
4.Frequency:50HZ/60HZ
5.Phase: Single Phase
6.Packing Size:42.0*52.0*91.0cm
7.G.W.:57kgs
Application:
1.Computer
2.Test equipment
3.Lighting equipment
4.Alarm and security system
5.X-ray equipment
6.Medical equipment
7.Duplicator
8.Boadcasting equipment
9.Numeric control machine tool
10.Industrial robot
11.Hi-Fi equipment

Model

PCSVC-10000VA

PCSVC-15000VA

PCSVC-20000VA

PCSVC-30000VA

TECHNOLOGY	Servo Motor Control System+Micro computer ptogramed control
LED DISPLAY	Info	Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection
	Protection	Over voltage	Output Voltage≥243±4V
		Low Voltage	Output Voltage≤188±4v
		Over Loading	More than 120%
		Over Temperture	120ºC±10ºC
		Delay Time	Long time(255 seconds)/Short time(5 seconds)
		Circuit Breaker	Regulator/Bypass
	Language	English/Russian/Chinese
INPUT VOLTAGE	AC150V-AC260V
OUTPUT VOLTAGE	220V±3% adjustable
FREQUENCY	50HZ/60HZ
PHASE	Single Phase
EFFICIENCY	≥90%
AMBIENT TEMPERATURE	-15ºC-45ºC
RELATIVE HUMIDITY	<95%
WAVEFORM DISTORTION	No additional wave from distortion
INSULATING RESISTANCE	Normally more than 2MΩ
SPECIFICATIONS
POWER	10000VA	15000VA	20000VA	30000VA
PACKING SIZE(CM)	43.0*45.0*72.0	42.0*52.0*91.0	42.0*52.0*91.0	51.5*48.0*94.0
PACKING(pcs)	1	1	1	1
G.M(kgs)	54.00	57.00	66.00	85.00

---
