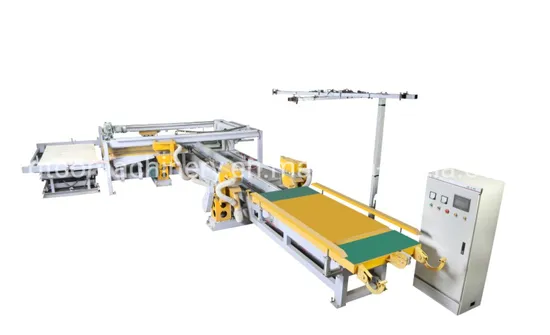

Plywood Automatic Trimming Cutting Saw Machine with SGS From China

US$6,000.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
GTS1500
Voltage
380V
Weight
5000kg
Application
Wood Panel and Other Manufacturing Plant
Power
39kw
Long Saw Cutting Size
1830-2440mm
Lateral Saw Cutting Size
800-1220mm
Working Speed
10-30m/Min
Saw Blade Dimension
Diameter305mm, Inner Diameter25.4mm
Capacity
8-12PCS/Min
Working Style
Infrared Ray Guidance
Working Method
Full Automatic
Applicable Industries
Manufacturing Plant, Wood Board Making Manufacture
Usage
Base Board Edge Cutting
Video Outgoing-Inspection
Provided
Power Type
Electric
Layout
Horizontal
Controlling Mode
CNC
Precision
High Precision
Certification
CE
Customized
Customized
Condition
New
Color
Customized
Warranty
1 Year
Type
Edge Triming Saw
Transport Package
Standard Export Package
Specification
8000*5000*1200mm
Trademark
GTCO
Origin
China
HS Code
84289090
Production Capacity
20 Set/ Month

Product Description

Product DescriptionPlywood edge trimming saw / panel saw/ edge cutting saw is the necesary and one of the most imortant machine during the plywood production process ,it cutting the rough said to the regular side as client request.Automatic edge trimming saw replance the old manual operation work way ,totally Automatic , save labor ,and btter work performance .
Product DetailsStrong structure The whole machine is made from suare iron 150x100mm . And double base bridge . total weight up to 7 tons .its strong enough ,and promise it wont out of shape during long work life
MODEL SIZE
Model 3648
plywood size 3x6ft 4x8ft
plywood thickness 3-70mm3-70mm
speed 300pcs/h300pcs/h
power 42kw48kw
Servo motor 2kwx22kwx2
saw head power 9kw9kw
machine size 5.4mx5.4mx1.7m5.8mx5.8mx1.7m
weight 6 tons 6 tons
Company ProfileWHO WE AREGTCO Machinery company is located in Linyi City--- a commercial and logistics city.
After more than 20 years' continuous innovation and development , Machinery has become an outstanding enterprise along with strong power , advanced technology and excellent quality Products are sold nationwide , exported to Asia , Europe , Africa and Oceania... etc .
WHAT WE DO
We have strong technical strength, talented people, and constantly introduces various automation and semi-automatic products. Now the national key promotion panel automation transformation production line, plywood production line, veneer machinery .automatic edge cut machine ,veneer peeling production line, veneer dryer, automatic veneer cutting machine, hot press, cold press, lifting platform, automatic putty- scraping machine and glue spreader etc.
2020 years ,we join in the new design and construction machine - stone crusher ,the main product have PE Jaw Crusher, PF Impact crusher , CS Cone crusher Feeder and screen Mobile crusher. etc.
We always right here waiting for service to you !
Welcome to visit us
WHY CHOOSE US
1. Customized equipment, especially of unusual size, press, etc.
2. High quality and technical support
3. So rich international-trade experience for machinery.
4. 7*24hour online service.
