Hot Sale 28mm Planetary Gear Box/12V 24V DC Motor/High Torque Low Speed Gear Motor/Low Noise/

Product Description

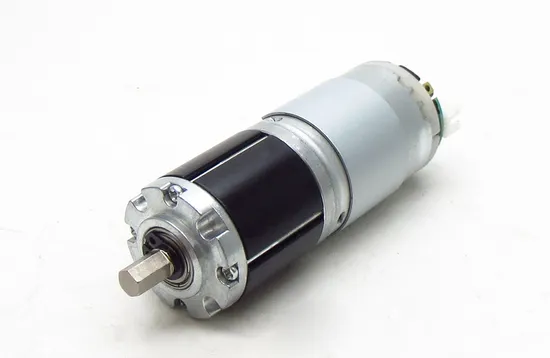

28mm low rpm electric gear motors
PG28M395 Series
Dia:Ø28×(68.5~88.9)mm
Rated torque:10kg.cm~50kg.cm
Product description

Product name	PG28395 series,28mm diameter planet gear motor
Motor type	carbon-brush commutator
Gear type	Straight gearwheel planet gearhead
Housing material	Steel
Geartrain material	Steel , Powdered Metal
Bearing at output shaft	Ball bearing
Lubricant	Grease for high-low temperature
Axial play	<0.3mm
Radial play	<0.05mm(5mm from mounting face)
Rotation direction	CW/CCW reversible
Backlash at no-load	<1°
Operating temperature range	-40 °C~+100°C
Noise (DB)	<55DB measured at 30cm distance
Lifetime	1000+ hours (varies by application)
OEM & ODM Service	Available
Certificate	CE,ROHS,SGS,TUV,IATF16949
Encoder	3PPR,7PPR,13PPR ,Click ME-28 to see details

Customized product show Do you need special adaptation for planetary gear drived out of the standard type?
No problem,Besides the standard,we can provide you with the following: output shaft, front cover, intermediary plate,housing,performance,etc.
Typical Application Video Application:Car power tailgate,Auto shutter,Blinding machine,ATM bank automatic system,Card conveyor,Automatic actuator, Household appliance.
From agriculture to commercial to medical to automotive and much more, we create solutions for businesses
in a wide range of industries. Check out some applications our motors and gears are used for.
CERTIFICATE

FAQ Q:1.What kind of motors you can provide? A: For now, we mainly provide permanent magnet brushed dc motors (including vibration motors, low voltage dc motors and high voltage dc motors) with diameter range in 6~80mm and also Dia10~80mm size gear motors. Q:2. Can you send me a price list? A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide. Q:3. What's the lead time for regular order? A: For orders, the standard lead time is 35-40 days and this time can be shorter or longer based on different model, period and quantity. Q:4. Is it possible for you to develop new motors if we can provide tooling cost? A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5. Can I get some samples? A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.

---
