Product Description
Product Description
PVC filler for cooling tower 305/610mm width oblique cooling tower fills trickling filtersProduct Description
Cooling Tower Film Fill Media Introduction
Cross Fluted Film Fill Media improve water distribution by splitting the water stream as it descends through the fill pack. The CF1900 MA splits the water stream 8 times in a 12” (305 mm) vertical path. High thermal performance (high KaV/L) and low pressure drop are simultaneously achieved through engineered flute/microstructure design and the highest manufacturing standards.PVC film fill with a 19mm pitch. The larger sheet spacing is suitable for water quality slightly less than ideal.CF1900MA is used in counterflow cooling tower applications and is available in glued blocks 305mm wide x 305mm high, and either 1830mm or 2440mm long.CF1900MA can also be cut to length to your specific requirements, or supplied as loose sheets.
specification
Cooling Tower Fill Technical Data
Name:
| Cooling Tower Fill
|
Type:
| Cooling Tower Parts
|
Unit:
| PC
|
Material:
| PVC
|
Usage:
| For industrial cooling tower
|
Specification
| 1200*303mm,1860*300mm,2440*300mm
|
Thickness
| 0.20-0.60mm
|
Temperature suitable
| 60 degree C~ -35 degreeC
|
Color
| Varity
|
Shaping mode
| Plastic extrusion mould
|
Brand Name:
| Lanyu
|
Place of rigin:
| Hebei, China
|
Minimum Order:
| 1000 PCS
|
Packaging Details:
| In bundle, wooden pallet or as your requests.
|
Terms of payment:
| By TT or Western Union
|
Sample delivery time:
| 5-7 days for spare parts
|
Supply Ability:
| 100000 piecess/month
|
Production date:
| Within 10-15 days
|

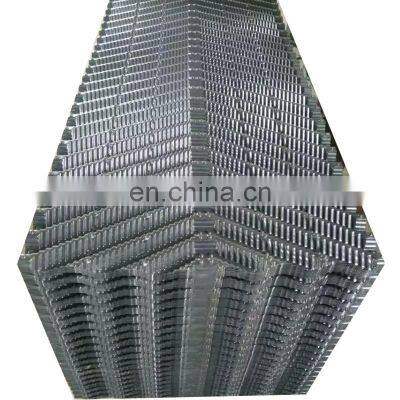

Cooling Tower Fill Detail Images
Width 305mm Width 610mm
Cooling Tower Fill Specification
Cooling Tower Fill Size
(mm)
| Fluted Size
(mm)
| Fill Material
| Fill Thickness
(mm)
| Feed Water Temperature
|
305×1830
| 12, 15, 19
| PVC, PP,
| 0.3-0.5mm
| PVC can reach the highest 68℃;
If the water temperature is higher than 70℃,
it needs PP material
|
305×1220
|
150×1830
|
150×1220
|
Cooling Tower Fill processing
Product Packing
Cooling Tower Fill packing
Related products
Hebei Lanyu Rubber & Plastic Products Co.,Ltd supply cooing tower fill. with good quality and competitve price and free sample for your reference.
Certifications
FAQ
1.Q:Why chose Hebei Lanyu?
A:We have 10 years experience for the rubber products field, and we can offer products with highest quality,most competitive price,and our best service together with our factory.
2Q:What trade terms can be accepted by us?
A:FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery.
3.Q:Can i get a discount for large quantity?
A:That’s a good question.When you place an order over $50000 for your second order,we will give you discount 1%~5% for your better sales,because you are good,we are good ,win to win.
>>
