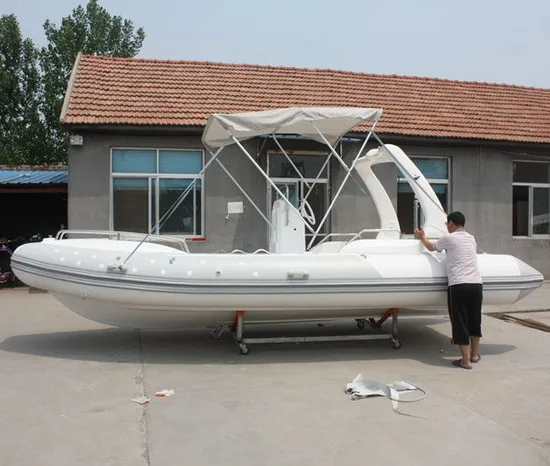

CE Approved Semi Rigid Rib Inflatable Boat

Product Description

CE Approved Semi Rigid RIB Inflatable Boat Our inflatable boats are produced with PVC/Hapalon according to client's requirement.Following is the materials we are using.
Hypalon (Orca, Taiwan Hypalon For Different Choice) German PVC (3 Years Warranty)
5 Years / 3 Years Warranty
3 different types for your choice
Model List

Model	GUB200	GUB230	GUB250	GUB270	GUB300	GUB330	GUB360
Over Length (CM)	200	230	250	270	300	330	360
Over Width (CM)	126	126	126	150	150	151	170
Inside length(CM)	130	154	164	175	198	228	252
Inside Width(CM)	61	61	61	68	68	68	80
Tube Diam. (CM)	34	36	36	40	40	40	45
Air Chamber	3+1	3+1	3+1	3+1	3+1	3+1	3+1
Max engine (HP)	3	4	5	8	10	15	20
Transom Height(cm)	37±1	37±1	37±1	38±1	38±1	38±1	38±1
Max People	2	2	3	3	4	5	5+1
Max Loading (KG)	200	200	280	355	465	525	620
N.W (KG)	24	26	32	50	54	65	66
G. W (KG)	26	29	35	52	57	68	70
All boats weight with 5%-10% deviation is normal
Packing size (cm)	113*60*35			115*65*45			123*75*45
0.8mm PVC for GUB200-GUB470, 1.2mm PVC for GUB500-GUB750

Model		GUB380		GUB430	GUB470	GUB500	GUB550	GUB600	GUB650	GUB700	GUB750
Over Length (CM)		380		430	470	500	550	600	650	700	750
Over Width (CM)		170		190	190	220	220	240	240	250	250
Inside Length(CM)		272		310	345	375	425	440	490	578	628
Inside Width(CM)		80		90	90	110	110	110	110	110	110
Tube Diam. (CM)		45		50	50	55	55	60	60	65	65
Air Chamber		3+1		4+1	4+1	5+1	5+1	7+1	7+1	7+1	7+1
Max engine (HP)		25		30	40	70	70	80	90	90	90
Transom Height		38±1		40±1	40±1	51±1	51±1	51±1	51±1	51±1	51±1
Max People		6		8	10	12	13	14	16	17	18
Max Loading (KG)		700		900	1050	1350	1450	1700	1800	1900	2000
N.W (KG)		78		95	124	146	149	190	195	221	239
G. W (KG)		83		105	130	152	155	200	225	233	251
All boats weight with 5%-10% deviation is normal
Packing size	123*75*45c m		Boat package size: 140*75*45cm Aluminum .floor:113*75*15cm			Boat package size :160*80*60cm Aluminum. Floor: 140*85*35cm				Boat package size :160*90*60cm Aluminum. Floor: 140*100*30cm

---
