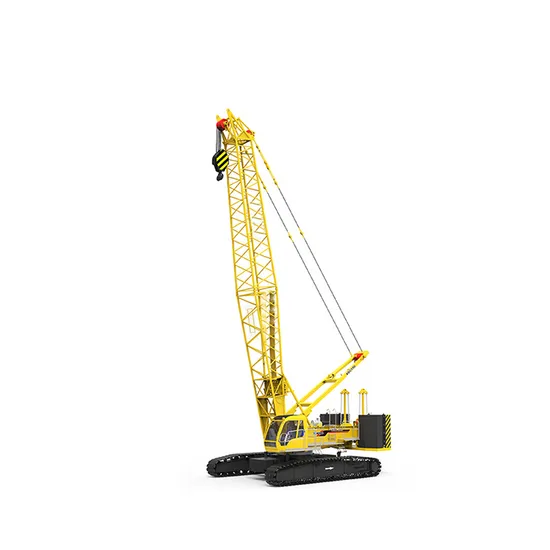

Track Type 180 Ton Mobile Crawler Crane (XGC180)

Product Description

Track Type 180 Ton Mobile Crawler Crane (XGC180)
Feasures 1. High lifting performance
Boom max. lifting capacity/radius 180t/5m, boom max. load moment 1043.8tm. Boom max. length+luffing jib max. length 58m+41m, luffing jib max. lifting capacity 50t.Fixed jib max. lifting capacity 33.5t.
2. Optimized design of transport and assembly/ disassembly
* Fully equipped self-assembly/disassembly system (Optional) can easily achieve: rear counterweight self-assembly/disassembly, track frame self-assembly/disassembly, and boom base self-assembly/disassembly.
* Largest single unit transport weight is controlled within 30t, transport width not more than 3m, so as to meet the transport requirement of global accessibility.
* Fixed jib can be three-piece integrated transport, and transport design of inserted boom sections, maximize the use of transport space, and save transport costs.
3. More optimized structural design
* Superstructure is a large box-type structural design, with heavy load bearing capacity, light weight, and good rigidity.
* Auxiliary hoisting winch is placed in boom base, with relaxed arrangement for turntable, easy maintenance.

Parameters

Item	Unit	Parameter value
Parameter Item	-	XGC180
Operation performance parameter		*
Max. rated lifting capacity for boom	(t)	180
Max. rated lifting capacity for fixed jib	(t)	33.5
Max. rated lifting capacity for luffing jib	(t)	50
Max. load moment	(t.m)	1043.8
Max. rated lifting capacity for tower jib	(t)	50
Boom length	(m)	19~82
Boom luffing angle	(°)	30~83
Fixed jib length	(m)	13~31
Tower jib length	(m)	20~59
Max. dimension of single unit in transport state (L×W×H)	(m)	12.5×3.0×3.3
Fixed jib offset angle	(°)	15,30
Max. single line speed for hoist mechanism	(m/min)	120/138
Max. single line speed for boom luffing mechanism	(m/min)	2×34/2×43
Max. single line speed for jib luffing mechanism	(m/min)	41.6
Max. slewing speed	(r/min)	1.5/2.0
Max. travel speed	(km/h)	1.3
Grade ability	(%)	30
Mean ground pressure	(MPa)	0.105
Max. single line speed for tower jib luffing mechanism	(m/min)	41.6
Model	-	QSL8.9-C340/QSL9-C325
Engine power	(kW)	250/242
Emission	-	National III/EU III
Overall crane mass	(t)	162.5(main hook, all counterweights, 19m boom)
Max. mass of single unit in transport state	(t)	39
