Multi-Colour Printing Dtf Printer For Tshirt With 2 I3200 Heads Dtf Printer

Product Description

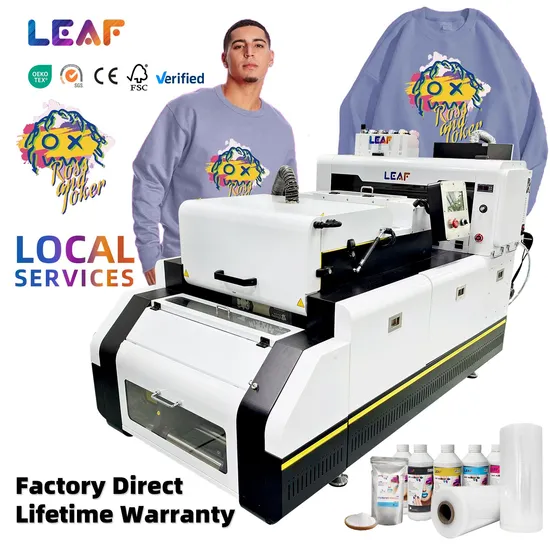

LEAF T-shirt printing machine All-in-One A3 DTF Printer With 2 i3200 Heads

Model	LF-470i		Printer Dryer	Arc board heating before and after printing, front guide board heating, upper drying heating, and curing
Printhead type	i3200		Platform suction	Adjustable suction
Printhead quantity	2		Print interface	Optical fiber network port
Printing width	≤370mm		Temperature	15 - 30ºC
Print configuration	CMYK+WWWW		Humidity	35-65%
Print Media	PET film		Take up winder and feeder	Automatic
Printing accuracy	1440/2160/2880dpi		Power	4.5KW
Printing speed	6Pass 7 Square Meter/H 8Pass 5 Square Meter/H		Power input	50HZ/60HZ,220V15A
Ink type	Pigment ink		Net weight	280KG
Ink supply system	1L main ink bottle + white ink circulation + stirring + ink shortage alarm		Gross weight	350KG
RIP software	PP(or Maintop)		Machine size	2100*1112*1209mm
Color management	ICC or density curve		Package size	1950*1130*1124mm 1210*650*716mm
Operate system	Win7, Win10

1. Dual Original Epson i3200 Printheads
6Pass: 9m²/H 8Pass: 7m²/H
Resolution: 1440/2160/2880dpi
CMYK+W configuration ensures vibrant colors & long-lasting output.
Support for Grey-Scale: Epson MEMS technology ensures precise nozzles, accurate ink paths, and near-perfect droplets.
PrecisionCore Technology: Epson VSDT controls droplet size: less graininess, more detail, smoother transitions, higher saturation.
Net Belt Drying Tunnel: High-efficiency drying to shorten delivery cycles. Ensures film stability and eliminates deviation during the process.
2.Protect Components, Ensure Durability
White Ink Circulation System: Automatic circulation prevents clogging, protects printheads, and ensures uninterrupted printing.
Ink Deficiency Alarm: Monitors ink levels in real-time. Alerts operators when ink is low to prevent printhead damage and reduce material waste.
3.Higher Precision and Stability
Ray AC Servo Motor: High power and dynamic response for smooth slide rail operation. Guarantees precise printing paths with zero deviation.
THK Guide Rails: Reduce friction, precisely control printhead movement. Durable and reliable, ensuring long-term efficient operation. Eliminates printhead offset, delivering flawless image reproduction.
High-Strength Frame: Industrial-grade, vibration-resistant structure maintains consistent and stable output.
4.Labor-Saving and User-Friendly
Multifunctional Touchscreen: Intuitive interface with real-time status monitoring and easy parameter adjustments.
Intelligent Auto Feeding & Collecting System: Automatic material alignment and feeding, eliminating manual errors.
FAQ
Q1:What is the Minimum Order Quantity(MOQ)?
A1: The minimum order quantity of ink is 80kg(1kg/bottle). And the minimum order quantity of film is 10rolls(100m/roll).
Q2:What is the lead time? (How long will it take to prepare my goods?)
A2:1-2days for sample orders, 3-5 days for bulk orders. (The exact time will be based on the requirements)
Q3:How will you deliver my goods to me?
A3:Normally, we will ship the goods by air, by sea, and by express, such as DHL, FedEx, UPS, TNT based on the needs of different clients.
Q4:How long will I need to wait to get my goods?
A4:2-3 days via air express, 2-6 days for by air, 20-35 days for by sea.
Q5:How can I pay for my order?
A5: You can pay for your order via T/T,L/C,D/P,D/A,Credit Card,PayPal,Cash,Escrow.We will send an invoice including all costs for confirming the order. But please notice that we are not responsible for any import tariff or customs clearance fees.
Q6:Can you print my logo on the products?
A6: Yes, we are the factory to accept customization. We can make your design or put your logo on the product, please send your design or inquiry to our email ( What's app or Wechat ), but also the packing design and other OEM services are available.
Q7:Can I take some samples?
A7: Yes, we can provide free samples. Please contact us for a more detailed sample policy.
Q8: How can I know the machine is what exactly I need?
A8: It depends on your machine brand and your printer material.
Q9: What's the warranty?
A9: One year. It includes online support, free spare parts, field installation, commissioning and training, field maintenance and repair service, video technical support.
Q10: How to install and run the machine?
A10: Please contact us for technical help and do not artificial modification. We always provide online technical support if any issues.

---
