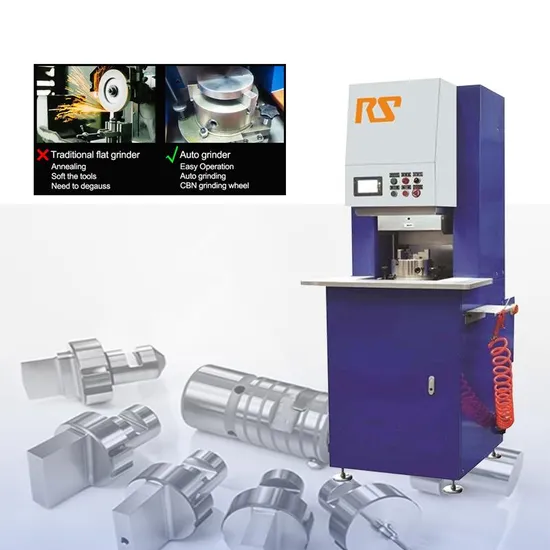

Factory Made Automated Height Detection Feature Punch Die Grinder

Product Description

Main Feature:
01. Automatic sharpening(Automatic tool setting, automatic removal).
02. PLC control, automatically complete the grinding process of rough grinding, fine grinding, polishing, etc.
03. Grinding accuracy: flatness±0.01MM.
04. The upper mold of AMADA 85 series AB station only needs to remove the pipe, and then the chuck can be installed for sharpening.
05. Automatic lubrication system.
06. Automatic cooling system(Prevent tool grinding and annealing).
07. Automatic liquid level detection system(Automatically alarm and stop when the coolant is lacking to prevent tool grinding and annealing).
08. Automatic filtration system(Filter cotton can be washed and reused).
09. Safety door protection and alarm function.
10. Grinding overload protection system.
11. Spindle upper limit alarm function.
12. Emergency stop alarm function.
13. Interrupt return function.
14. Exhause system helps trap remaining swarf.
Parameter:

Name	WG-150
Voltage	AC380V, 50HZ
Table Motor & Rotating	0.55 KW, 60 RPM
Motor of Rotating Table	0.100KW, 1440 RPM
Spindle Motor & Rotating	2.2 KW,3000RPM
Cooling Motor	0.12KW
Maximum Grinding Diameter	Ø200
Maximum Grinding	1mm
Maximum Grinding Stroke	250mm
The diameter of Grinding Wheel	CBN Ø150
Grinding Range	0.001-0.02mm
Weight of Machine	600KG

FAQ
1.How many models of grinding machine are there?
A: We have 3 models. RG-160;WG-150;IS-160
2.Which brands of molds are suitable for?
A: Suitable for Amada,Murata and Trumph.
3.How can I choose the right fixture?
A: As each brand has different mold sizes, you can contact us.

---
