Save Enegry Plastic Injection Mould/Moulding Machinery/Machine 130ton

Product Description

Specification of save enegry injection moulding machine D-RI130
1. Product details:
2. Technical data of D-RI130

Model Item	D-RI 130
Screw diameter(mm)	45
Injection pressure(Mpa)	151
Shot weight(PS) (g)	257
Screw L/D ratio	18:1
Screw stroke (mm)	191
Screw speed(r.p.m)	5-170
Injection rate (cm3/s)	125
Plasticizing capacity(g/s)	22.5
Clamping stroke(tons)	130
Mould clamping stroke (mm)	375
Max. daylight opening (mm)	805
Mould thickness (Min.-Max.) (mm)	150-430
Space between tie-bars (mm)	420*420
Hydraulic ejection force (tons)	3.8
Hydraulic ejector stroke (mm)	115
Max. pump pressure(Mpa)	16
Motor power(KW)	13
Heater power(KW)	6.3
Temperature control zones	3+1
Tank capacity (L)	220
Machine dimension(L*W*H)	4150mm*1290mm*1800mm
Machine weight(ton)	4.5

3. Spare parts of list for D-RI130

Name	No.
Heating collar(big)	4pcs
Heating collar(small)	4pcs
Contactor	2pcs
Nozzle	1set
Limit switch	2pcs
Oil seal	4pcs
O-ring seal	8pcs
Pipe connector	2pcs
Mould-clamping unit	8pcs
Screw	8pcs*2
Grease oil	1bucket
Foot base	8pcs
book	1set

4. Machine main feature:
1. Full-scale oil system
2. Streamlined no dead material back check valve design
3. A full range of computer display control system
4. Precision optical ruler control injection quantity, matching with three-stage injection control
5. With Japan made high-tech infrared safety electric eye
6. Double helical loop temperature control system
7. Multi-stage design to eliminate bubbles during feeding material
8. Can match with cold and hot runner for run material model
9. Silicone large capacity feeding barrel, can feed material 20kg-25kg one-time

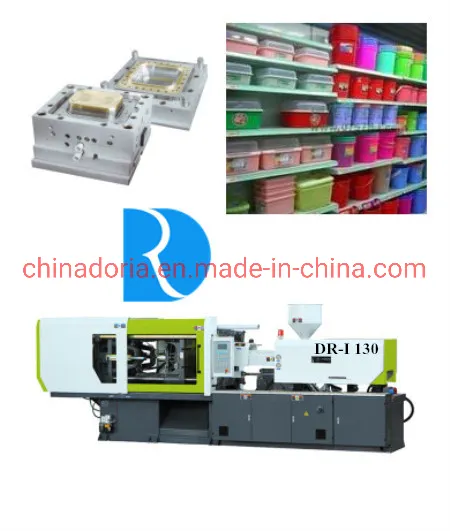

5. Pictures of machine
6. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us; we hope we will have good chance to cooperate!
7. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China
