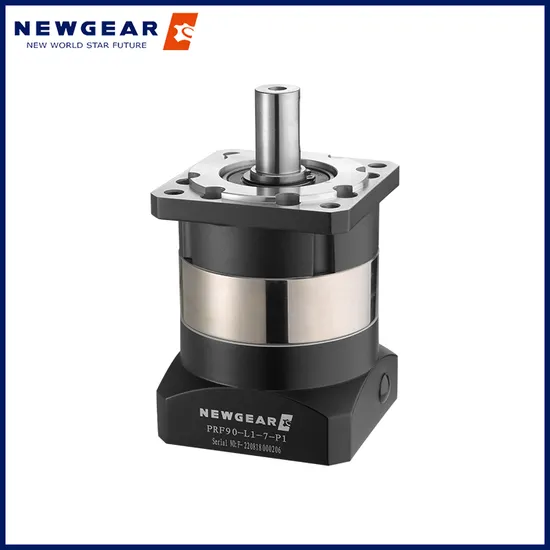

Best Price Prf90 Series Planetary Gearbox for 750W Servo Motor

Product Description

Best Price Prf90 Series Planetary Gearbox for 750W servo motor
Descriptions:
1.Square flange output,standard size;
2.The input connection specifications are competeand there are many choices;
3.Straight transmission,single cantilever structure,design simple,high cost performance;
4.Stable operation,low noise;
5.Keyway can be opened in the force shaft;
6.Size range:40-160mm;
7.Ratio range:3-100;
8.Backlash: 8-16arcmin
Product Parameters

Specifications				PRF40	PRF60	PRF80	PRF90	PRF120	PRF160
Technal Parameters
Max. Torque			Nm	1.5times rated torque
Emergency Stop Torque			Nm	2.5times rated torque
Max. Radial Load			N	185	240	400	450	1240	2250
Max. Axial Load			N	150	220	420	430	1000	1500
Torsional Rigidity			Nm/arcmin	0.7	1.8	4.7	4.85	11	35
Max.Input Speed			rpm	8000	8000	6000	6000	6000	4000
Rated Input Speed			rpm	4500	4000	3500	3500	3500	3000
Noise			dB	≤55	≤58	≤60	≤60	≤65	≤70
Average Life Time			h	20000
Efficiency Of Full Load			%	L1≥96% L2≥94%
Return Backlash	P1	L1	arcmin	≤8	≤8	≤8	≤8	≤8	≤8
		L2	arcmin	≤12	≤12	≤12	≤12	≤12	≤12
	P2	L1	arcmin	≤16	≤16	≤16	≤16	≤16	≤16
		L2	arcmin	≤20	≤20	≤20	≤20	≤20	≤20
Moment Of Inertia Table	L1	3	Kg*cm2	0.1	0.46	0.77	1.73	12.78	36.72
		4	Kg*cm2	0.1	0.46	0.77	1.73	12.78	36.72
		5	Kg*cm2	0.1	0.46	0.77	1.73	12.78	36.72
		7	Kg*cm2	0.06	0.41	0.65	1.42	11.38	34.02
		10	Kg*cm2	0.06	0.41	0.65	1.42	11.38	34.02
	L2	12	Kg*cm2	0.08	0.44	0.72	1.49	12.18	34.24
		15	Kg*cm2	0.08	0.44	0.72	1.49	12.18	34.24
		16	Kg*cm2	0.08	0.44	0.72	1.49	12.18	34.24
		20	Kg*cm2	0.08	0.44	0.72	1.49	12.18	34.24
		25	Kg*cm2	0.08	0.44	0.72	1.49	12.18	34.24
		28	Kg*cm2	0.08	0.44	0.72	1.49	12.18	34.24
		30	Kg*cm2	0.08	0.44	0.72	1.49	12.18	34.24
		35	Kg*cm2	0.08	0.44	0.72	1.49	12.18	34.24
		40	Kg*cm2	0.08	0.44	0.72	1.49	12.18	34.24
		50	Kg*cm2	0.05	0.34	0.58	1.25	11.48	34.02
		70	Kg*cm2	0.05	0.34	0.58	1.25	11.48	34.02
		100	Kg*cm2	0.05	0.34	0.58	1.25	11.48	34.02
Technical Parameter	Level	Ratio		PRF40	PRF60	PRF80	PRF90	PRF120	PRF160
Rated Torque	L1	3	Nm	/	27	50	96	161	384
		4	Nm	16	40	90	122	210	423
		5	Nm	15	40	90	122	210	423
		7	Nm	12	34	48	95	170	358
		10	Nm	10	16	22	56	86	210
	L2	12	Nm	/	27	50	95	161	364
		15	Nm	/	27	50	96	161	364
		16	Nm	16	40	90	122	210	423
		20	Nm	15	40	90	122	210	423
		25	Nm	16	40	90	122	210	423
		28	Nm	16	40	90	122	210	423
		30	Nm	/	27	50	96	161	364
		35	Nm	12	40	90	122	210	423
		40	Nm	16	40	90	122	210	423
		50	Nm	15	40	90	122	210	423
		70	Nm	12	34	48	95	170	358
		100	Nm	10	16	22	96	80	210
Degree Of Protection				IP65
Operation Temprature			ºC	- 10ºC to -90ºC
Weight	L1		kg	0.43	0.98	2.3	3.12	7.08	15.5
	L2		kg	0.65	1.26	2.97	3.82	8.7	17

Company Profile
FAQ Q: What're your main products?
A: We currently produce planetary gearbox, right angle reducer, hollow rotary platform, precision gear, custom gear, worm wheel worm gear, chain gear, gear rack, gear ring and timing belt pulley etc.
Q: How to select a suitable planetary gearbox?
A: Firstly, if you have motor pictures or drawings to show us, we can recommend suitable planetary gearbox and give your best price. If you don't motor drawings and please give your motor parameters to us, we can send our planetary gearbox drawings to send you, and we give your best price after you check it ok.
Q: What's your lead time?
A: Generally speaking, our samples will need 7-15 days.
We are very flexible on the lead time, it will depend on the specific orders

---
