Zoomlion 20m Za20je Zoomlion Aerial Work Platform in Ghana

Product Description

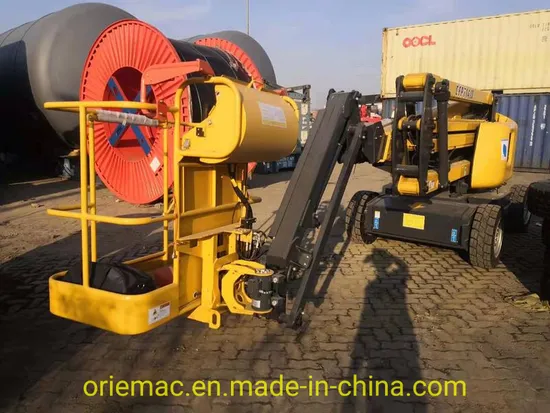

Zoomlion 20m Za20je Zoomlion Aerial Work
Zoomlion articulating boom lifts offer high capacity, great outreach and easy maintenance. The larger work envelope provides you with access to those hard-to-reach places. Electric articulating boom lifts are environmentally friendly with zero emissions, suitable for sensitive work environments.
ZA14JE is an electric articulating boom lift. It adopts a center layout and has a great structural rigidity. Excellent energy management system gives longer running time and improves battery life. The accurate and efficient AC drive system provides strong power and smooth control. Advanced dual control system (valve control + pump control) offers an energy-saving and efficient operation. With low noise, zero emissions and easy maintenance, this boom lift is ideal for indoor applications.

Electric Articulating Boom Lifts
Comply with CE/ANSI/GB Standard
Model	ZA20JE GB	ZA20JE CE
Size
Work Height	21.45m	21.50m
Platform Height	19.45m	19.50m
Horizontal Outreach	11.45m	11.45m
Up and Over Height	8.25m	8.30m
A - Stowed Length	8.72m	8.72m
B - Stowed Width	2.49m	2.49m
C - Stowed Height	2.52m	2.56m
D - Platform Length	1.83m	1.83m
E - Platform Width	0.76m	0.76m
F - Wheelbase	2.52m	2.52m
G - Ground Clearance	330mm	375mm
Performance
Platform Capacity	250kg	250kg
Drive Speed	6.1km/h	6.1km/h
Gradeability	45%	45%
Axles Oscillation	200mm	200mm
Turning Radius (Inside)	2.78m	2.78m
Turning Radius (Outside)	5.49m	5.49m
Swing	400° non-continuous	360° continuous
Platform Rotation	±90°	±90°
H-Tail Swing	0.6m	0.6m
Max. Working Slope	3/5°	3/5°
Max. Wind Speed	12.5m/s	12.5m/s
Power
Battery	8×6V/420Ah	8×6V/420Ah
Charger	48V/35A	48V/60A
Drive Motor	AC 32V/3.3kw	AC 32V/3.3kw
Lift Motor	AC 32V/10kw	AC 32V/10kw
Auxiliary Power	Manual Pump	12V DC
Hydraulic Tank Capacity	75L	75L
Tire
Type	33x12 D610 Foam-filled Tires	355/55 D625 Foam-filled Tires
Weight
Gross	9200kg	9200kg

Our company will offer you the high quality products with a low price, quick delivery, and professional after-sale services.
Oriemac Machinery & Equipment (Shanghai) Co., Ltd. Oriemac is a leading Chinese construction machinery exporter, located in Shanghai, and has introduced top Chinese machinery enterprises and their products to international markets.
