120A MPPT Hybrid Inverter: Reliable Solar Energy Solution

Product Description

Product Description
One-stop new energy solution provider! we are the one of the best professional off grid solar products manufacturers and whole solar energy system supplier.IP54 OFF Grid Hybrid MPPT Solar Inverter Key Features:
* Pure sine wave solar inverter
* IP54 design
* Inverter running without battery.
* One-key restoration to factory settings.
* Built-in lithium battery automatic activation.
* Bulit-in 120A MPPT solar controller
* High PV input voltage range(85-450VDC).
* Built-in anti-dusk kit for harsh environment.
* Smart battery charge design to optimize battery life.
* WIFI available for IOS and Android.
Product Parameters

		GPEO-4K6L1	GPEO-6KL1	GPEO-11KL1
PV (DC Input)	Recommended max. PV input power	4000W	6000W	11000W
	Max. input voltage(Voc)	500V	500V	500V
	MPPT operating voltage range	85V-450V (@85V start up)	85V-450V (@75V start up)	85V-450V (@75V start up)
	Number of MPPT	1	1	2
	Max. number of input strings per MPPT	1	1	1
	Max. input current per MPPT	15A	27A	27/13(MAX:40A)
	Max. short-circuit current per MPPT	18A	35A	37A/17.5A
Grid (AC Input)	Max output power	5000W	11500W	16000W
	Rated grid voltage	220/230/240Vac	220/230/240Vac	220/230/240Vac
	Rated grid frequency	50/60Hz	50/60Hz	50/60Hz
	Acceptable range	170-280Vac (For UPS) ; 90-280Vac (For Home Appliances)	170-280Vac (For UPS) ; 90-280Vac (For Home Appliances)	170-280Vac (For UPS) ; 90-280Vac (For Home Appliances)
Battery Parameters (Bidirection)	Battery type	LiFePO 4/Lead-acid	LiFePO 4/Lead-acid	LiFePO 4/Lead-acid
	Battery voltage range	20~30Vdc	40~60Vdc	40~60Vdc
	Rate Battery Voltage	24Vdc	48Vdc	48Vdc
	Max. charge/discharge current	120A/135A	120A/130A	210A/240A
	BMS communication mode	RS485	RS485	RS485
Back-up Output (AC Output)	Rated output power	3600W/3600VA	6000W/6000VA	11000W/11000VA
	Rated output current	16.4A	27.3A	54.5A
	Rated output voltage / Frequency	220/230/240Vac 50/60Hz	220/230/240Vac 50/60Hz	220/230/240Vac 50/60Hz

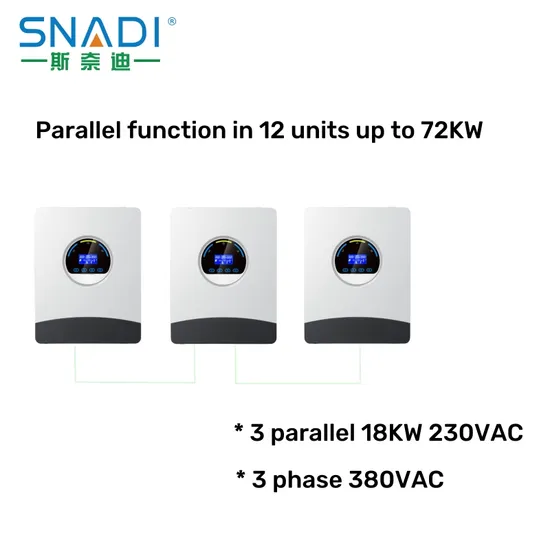

	Parallel Capacity	-	Max. 12 Units	Max. 12 Units
	Surge power	7200VA 5s	12000VA 5s	22000VA 5s
	THDv (@ linear load)	<3%	<3%	<3%
	Switching time	10ms typical (For UPS) 20ms typical (For Home Appliances)
Efficiency	Peak efficiency	95.00%	98.00%	98.00%
	Max. MPPT efficiency	99.90%	99.90%	99.90%
Protection	Inner protection	√ Output short-circuit protection √ Output overvoltage protection
	Surge protection	PV: Type III, AC: Type III
	IP rating	IP54
General Parameters	Operating temperature range	-10°C ~ 55°C
	Relative humidity range	5%~95%	5%~95%	5%~95%
	Max. operating altitude	>2000m derating	>2000m derating	>2000m derating
	Standby self-consumption	<10W	<10W	<20W
	Installation type	Wall-mounted	Wall-mounted	Wall-mounted
	Cooling mode	Fan cooling	Fan cooling	Fan cooling
	Communication	RS232/RS485/Dry contact/WI-FI	RS232/RS485/Dry contact/WI-FI	RS232/RS485/Dry contact/WI-FI
	Display	LCD	LCD	LCD
Mechanical Specifications	Inverter dimensions (L*W*H) (mm)	444.7*346.6*120	444.7*346.6*120	630*535*125
	Net weight (kg)	9.2	12.4	25
	Shipping dimensions (L*W*H) (mm)	560*465*240	560*465*240	745*650*240
	Gross weight (kg)	11.4	14.6	27.2
	Warranty Period	3 Years

Installation Instructions

Certifications
Company Profile
FAQ 1. How to insatll and use the product?
We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.2. What if I don't have export experience?
We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.3. How is your technical support?
We provide lifetime online support through Whatsapp/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.4. How can I make sure it's a secure transaction?
A can protect buyers' interest, all of our transation will go through a platform.As you do the payment, the money will go directly to A bank account.After we send your the items and you comfirm the detailed information, A will release us the money.5. Can you get the product customized for us?
Of course, brand name, machine color, designed unique patterns available for customization.6. How to become your agent?
Contact us through Made-in-china, we will give you the best price and look forward to your greetings.

---
