4 Axis Vmc 5 Axis Vertical CNC Milling Machine CNC Vertical Machining Center Machine

Product Description

4 Axis VMC 5 axis vertical CNC Milling Machine CNC Vertical Machining Center Machine

Configuration
system	GSK980 or SIEMENS808
Main motor	3.7kw servo motor
Feeding motor	Sever motor
Spindle	TAIWAN 8000rpm
Leading screw	TAIWAN
tool magazine	TAIWAN 12PCS
Tool magazine	12pcs umbrella type from TAIWAN
3 axis linear guideway	TAIWAN ABBA
Spindle taper	BT40

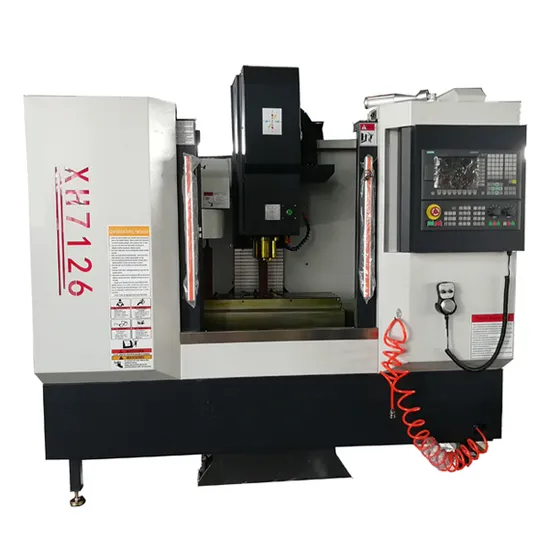

XH7126 3 Axis CNC Vertical Milling center Machine with KND

Model	XH7126
Main Motor Power KW	3.7kw
Spindle Max. Rotating Speed	6000rpm
T slot	14x3x80
table load	200kg
rapid movement speed X/Y/Z	15/15/15m/min
cutting feed speed X/Y/Z	1-6000mm/min
Spindle Taper	BT40
Worktable Size	800x260
Travel(Longitudinal X/Horizontal Y/Vertical Z)	450x300x400mm
Distance of Spindle Axis to Guideway Plane	360mm
Distance of Spindle End to Worktable	90-520mm
Positioning Accuracy	±0.015mm
Repeated Positioning Accuracy	±0.0075mm
Machine Overall Dimension (L*W*H) mm	2200×1900×2200
Machine Net Weight KG	1500
Magazine Capacity	12
tool weight	8kg
tool change time	6s
External Protection Level	Full Closed

ACCS . XH7126 3 Axis CNC Vertical Milling center Machine with KND

Spare parts:
name	brand
Spindle bearing	NSK
Leading screw bearing	NSK
Coolant pump	China famous brand
Central lubrication station	China famous brand

PACKING LIST==XH7126 3 Axis CNC Vertical Milling center Machine with KND

Packing list
Name	size
Machine	XH7126
Adjusting screw and sizing block
Internal hexagonal wrench	5,6,8,10
Milling chuck
Dead wrench	S17~19,S22~24
Operation manual
Packing list

PACKAGE
CERTIFICATE:
Our Services:
1. Your inquiry and email will be replied within 24hours.
2. If you need to develop products with your own specification, we can help you to work it out.
3. Always be honest, never lie to customer, and never declare anything we don't have.
4. Customer First:,we offer best Quality and Service!
FAQ:
1. Payment Method:
30% deposit T/T in advance, rest against the copy of B/L or before delivery.
2. Delivery Time:
one week
3. MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.
4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS

---
