Complete River Sand Washing Plant Screw Spiral Sea Sand Washer Machine For Sale

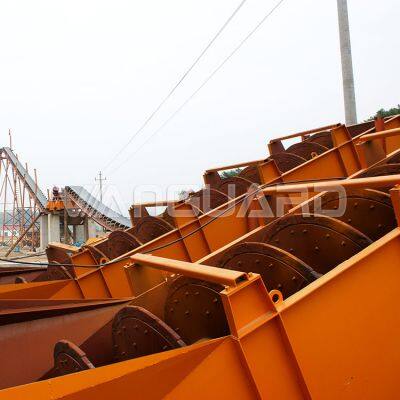

LSX sand washing machine is a kind of water washing sand washing equipment used with the sand making machine. The sand washing machine can wash the mixed sand produced by the sand making machine to remove the trace stone powder and impurities, so as to improve the quality of the sand. VANGUARD LSX series sand washing machine is developed according to practical conditions of sand industries to meet the ISO standard. This series of product can clean and separate mud and impurities from gravel, which is applied in sand using unitssuch as roads, watercon servancy, construction, etc. Cleaning and dehydration are completed well by novel sealing structure, adjustable weir plate, and reliable transmission device.
WORKING PROCESS
Step 1.
| Cleaning: removing mud and impurities from sands;
|
Step 2.
| De-watering:removing water from sands;
|
Step 3.
| Grading: overflowing ungraded fine grains.
|
WORKING PRINCIPLE
Screw sand washing machine is a machine which uses the buoyancy of water to separate dust and impurities from sand. With the agitation of the screw slice, the impurities will be washing off. Meanwhile, the fine sand and the coarse sand will be mixed uniformly while it is lifted up. Screw sand washing machine is designed according to the characteristics that materials with different particle size and density
have different settling velocity in the fluid. The particle with fine size and less density has a lower settling speed. Conversely, the particle with coarse size has a higher settling speed. With the agitation of the screw slice, you can get the purpose of separating dust and impurities from sand.
PRODUCT ADVANTAGES
I. Simple structure and stable operation;
II. Reasonable structure;
III.Low power consumption and low maintainance cost;
Ⅳ.Lower end bolted to fully machined stub shaft. Upper end mounted through flexible coupling to output shaft of gearbox.
V. New sealing structure and reliable transmission device;
VI. Large capacity and 95% fine particles in the material can be recycled.
PRODUCT PARAMETERS
Model
|
Diameter (mm)
|
Length (mm)
|
Feed size (mm)
|
Capacity (t/h)
|
Speed (r/min)
|
Power (kw)
|
Water (t/h)
|
Outer Dimension
(mm)
|
Weight (t)
|
LSX920
| 915
| 7585
| ≤10
| 100
| 21
| 11
| 10-80
| 8420*2810*3960
| 6.3
|
2LSX920
| 915
| 7585
| ≤10
| 200
| 21
| 11*2
| 20-160
| 8420*3765*3960
| 11.1
|
LSX1120
| 1115
| 9782
| ≤10
| 175
| 17
| 15
| 20-150
| 10970*3945*4720
| 10.2
|
2LSX1120
| 1115
| 9782
| ≤10
| 350
| 17
| 15*2
| 40-300
| 10970*5250*4720
| 17.9
|
CUSTOMER CASES
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.
Matching of production and support system allows customers to get best service at lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification and European CE certification and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.
Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.
Q3：What about Warranty?
Ours Warranty is 1 year for whole machinery .For wear parts, we guarantee the high quality parts for long-term supply.
Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
