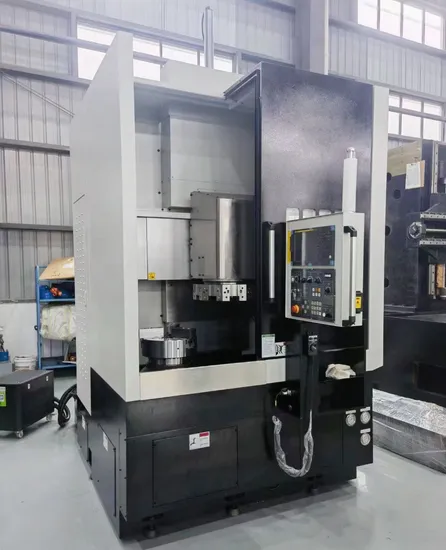

Brake Disc Cutting Dia 780mm Vertical Turning Lathe Milling Machine for Sale

Product Description

1.lt is suitable for large, thin, heavy and irregularty shaped machined objects,and it is easy to machine,and to load and unload the workpieces;
2.Due to the dead weight of machined object, it can be in close contact with the reference plane of jig and fixture, obtaining high-precision and stable machining results for the machined object;
3.Avoid ellipse machining caused by inertia, while showing the precision of extremely close roundness;
4.Irregular workpieces that are difficult to clamp can also be easily and smoothly machined,and the structure of jig and fixture is simplified, thus reducing the manufacturing cost;
5.The bottom bed has a highly rigid design that is nearly square,with minimal impact of thermal displacerment and vibration;
6.The three-dimensional assembly line conforms to the ergonomic operability, and the workpiece is easy to transport;
7.It has a small floor space.

Standard specifica		Unit	SZ550E
Machine capability
Three-jaw hydraulic collet		Inch	15"(381mm)
Maximum rotation diameter		mm	ø800
Maximum cutting diameter		mm	ø780
Amount of movement
Left and right(X-axis)stroke		mm	420
Up and down (Z-axis)stroke		mm	620
Spindle
Inner diameter of spindle bearing		mm	160
Spindle nose		mm	A2-11
Spindle speed	Low gear	min-¹	50~2000
	High gear
Turret
Turret type			Horizontal
*Number of tool⋆		Pcs	10
Tool size		mm	32,ø50
FANUC Motor
Spindle motor		kw	18.5/22
X-axis servo motor		kw	3
Z-axis servo motor		kw	4
Y-axis servo motor		kw
Hydraulic motor		kw	2.2
Motor for cutting fluid pump		kw	1kw×3
Electromechanical system
*Power demand⋆		KVA	45
Machine dimennsions(approximate value)
Floor area(L×W*)		mm	3600×1800
Machine height		mm	3,800
Machine weight		KG	12,500

Type A turret (vertical turret)
The turret adopts a toothed clutch for positioning, with positioning accuracy of 5" and repeated accuracy of 3": The circular arc tooth type can withstand high cutting force, the turret is driven by a high -torque hydraulic motor to rotate quickly, and the speed is controlled by a cam, so that the tool changing process is smooth. Controlled by an intelligent computer, it achieves bidirectional nearby tool selection to shorten the tool changing time.lt is suitable for machining workpieces with large diameter and deep hole, such as motor frames, truck brake drums, valves, etc.
Type E turret (horizontal turret)
The rotating disc type turret is designed with the nearby tool selection function, saving non-cutting time. The turret adopts a high-rigidity and high -strength toothed clutchwith high positioning accuracy and repeatability, showing the best machining capability. Related characteristics enable more significant efficiency in the automobile parts processing industry, such as brake discs, brake drums,wheel hubs,knuckles, etc.
Type B turret (comb type turret)
The comb type turret is simple in structure and not easily damaged, with strong rigidity, low investment cost and no tool changing time, so it is a good choice for simple machined objects.
V.D.I turret(horizontal power turret)
The high-rigidity V.D.I turret enables the machine tool to perform multifunctional machining such as turning, driling, tapping, etc., which can reduce the loading and unloading time of workpieces and cost of fixtures, and reduce the logistics space.
THE WORKSHOP
CUSTOMER CASE: brake disc, motor base, wheel drum, encoder, turbine hosing, knuckle, pressure plate,flying wheels, motor end cover...
WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.

Q: What are your normal lead times?
A: Normally, 30 to 60 days
Q: What kind of package do you offer?
A: Standard wooden case packing
Q: Do you have certification of your machine?
A: CE certificate
Q: How about the warranty service?
A: 24 months
Q: How about the installation and commissioning?
A: we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to debug machinery overseas.
Q: How to select the suitable machine?
A: Pls tell us the machine you need, Includes drawings, specifications and other requirements.
Q: How to do it if we meet the issue during the operation?
A: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q: If we want to learn how to operate the machine, Can you provide it?
A: Yes, we have special service team which will offer you professional guidance.

---
