Pneumatic Disc Towing Hook for Ship

Product Description

Pneumatic Disc Towing Hook for Ship
Quick Relase Disc Marine Towing Hook for ships:
30T Pneumatic Disc Marine Towing Hook with Good Quality
Type:DY3301006
Brand: Deyuan Marine
Material: Steel
SWL: 30-100 Ton
Surface: Painted
Certificate: ABS, LR, CCS, BV, DNV, etc.
Origin: China
1.Quick release mooring hooks have been specially designed for safe manual and optional remote release of mooring lines whilst under full load conditions.
2. This requires only a minimal effort and only a single action is required to reset the hook back to its working position.
3. The mooring hooks are available as standard with a capacity of 40,60,75,100,125,150 and 200 metric tons and can be supplied as single, double, triple, sextuple or quadruple hook assembly.
4. The mooring units can be mounted onto concrete or steel deck structures and are designed to operate through 180 degrees horizontally and 45 degrees vertically.
5. They can be supplied with integral capstans and/or various other features such as remote control and mooring load monitoring systems. Available type of Quick Relase Disc Marine Towing Hook for ships: 1: Manual release spring marine towing hook
2: Manual release marine harbour towing hook
3: Manual release disc marine towing hook
4: Pneumatic spring marine towing hook
5: Pneumatic disc marine towing hook
6: Pneumatic marine harbour towing hook
7: Single quick release mooring hook
8: Double quick release mooring hook
9: Triple quick release mooring hook
10: Quadruple quick release mooring hook
Specification of Quick Relase Disc Marine Towing Hook for ships:
1.Type: Disc Type Towing Hook
2.Control System: Pneumatic Release
3.Usage: For Emergency Towing and Port Towing
4.Safe Working Load: 30t,50t,60t,80t,90t,100t
5.Material: Steel
6.Movement: Side Movement
7.Color: Yellow, Black, Red or as Required
8.High Quality with Competitive Price
9.Certificate: CCS, ABS, NV, DNV,GL, LR etc.
10.Can be Customized according to Special Requirements
If you are interested in our products or have any questions, please feel free to contact us for more details.
Deyuan Marine has been waiting for your contact.

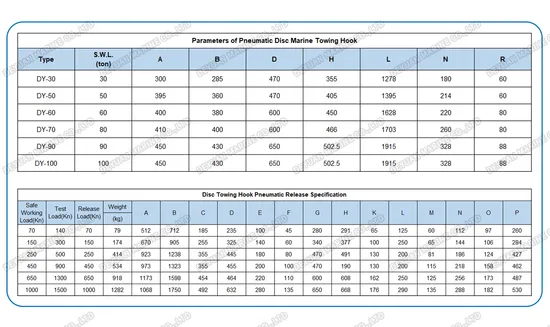

Technical Parameters of Quick Relase Disc Marine Towing Hook for ships

---
