China Atc CNC Router 1325 Woodworking Machinery for Cutting Glass, Aluminum, Wood for Furniture for Sale in Lithuania

Product Description

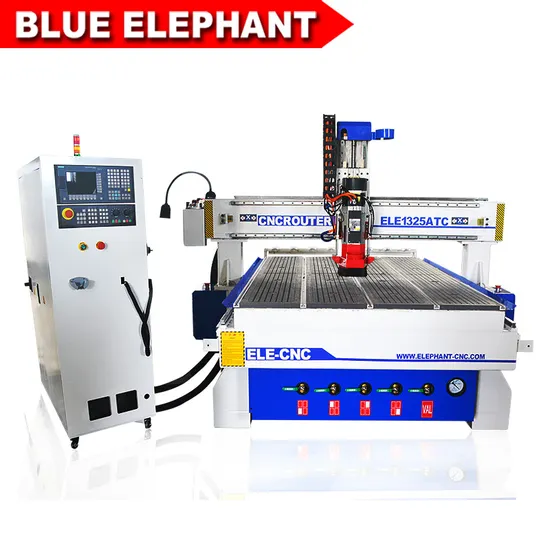

China Atc CNC Router 1325 Woodworking Machinery for Cutting Glass, Aluminum, Wood
Advantages of auto tool change cnc router:
German SIEMENS controller and servo,with high precision and best quality. Oil mist cooling,Help to improve the effect of metal processing. The working voltage can be in 400V, 380v or 220V, European technology standards. Italy HSD automatic tool changing spindle,the max pwer can be in 9KW. Parameters of auto tool change cnc router:

Description	Parameters
Modle	ELE1325ATC
Working size	1300*2500*200mm
Color	Customizable
Working Voltage	400V, 3Phase, 50Hz
Control system	Germany SIEMENS 808D Control System
Spindle	9kw HSD ATC air cooling spindle
Inverter	11kw Delta Inverter
Motor & Driver	SIEMENS Servo Motor & Driver
Traveling speed	45m/min
Working speed	25m/min
Auto tool changer magazine	Linear
Tool slots	8
Table surface	T-slot and vacuum working table with 4 zone
Lubrication system	Automatic lubrication system
Gantry structure	Gantry moving
Structure	New type thicker and bigger heavy duty welded frame and gantry
Transmission	X,Y rack and pinion drive, Z Taiwan TBI ball screw
Rail	Taiwan HIWIN Linear square guide #25
Vacuum pump	5.5kw air type vacuum pump (380V, 3Phase, 50Hz)
Dust collector	1.5kw new type double packet dust collector (380V, 3Phase, 50Hz)
Tool sensor	Automatic tool sensor calibration

PS:All the working area and specifications can be customized according to your requests.
https://blueelephant-cnc.en.made-in-china.com/contact-info.html
Product details of auto tool change cnc router: Features of auto tool change cnc router:
Effective working area: 1300*2500mm*200mm Linear type automatic tool changer 9kw Italy HSD ATC air cooling spindle 11kw Taiwan Delta inverter German SIEMENS control system German SIEMENS 1kw servo system 5.5KW air type vacuum pump New type 1.5kw Dust collector system with two bag Helical rack Oil mist cooling Taiwan TBI ball screw Taiwan HIWIN square linear guide way for 25mm Automatic Tool sensor calibration Automatic oil lubrication system Vacuum & T-slot working table Japan Omron limit switch France Schneider safety switch MPG hand wheel Applications:
Advertisement: engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials. Including marble, brass, steel, and other metallic material. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto. Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould. Architectural models: engraving fine window, fencing and wall patterns, etc. Seal: engraving seals and medal on materials such as buffalo horn, wood etc. Label: engraving character, number, and other pattern on label for products and on product directly. Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture. Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
Welcome to our factory:
Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine. We have our R & D department, Quality control department, and after sale & service department. Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on. We had got CE and ISO9001 certification always offer best quality machine. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform! Just looking forward to service every customer, like you.
Contact us:
Mobile: 0086-15064026772
Web: blueelephant-cnc.en.made-in-china.com

---
