Grain Silo and Enamel Tank Lifting Jacks Piston Type Hydraulic Jacking System

Product Description

Product Description

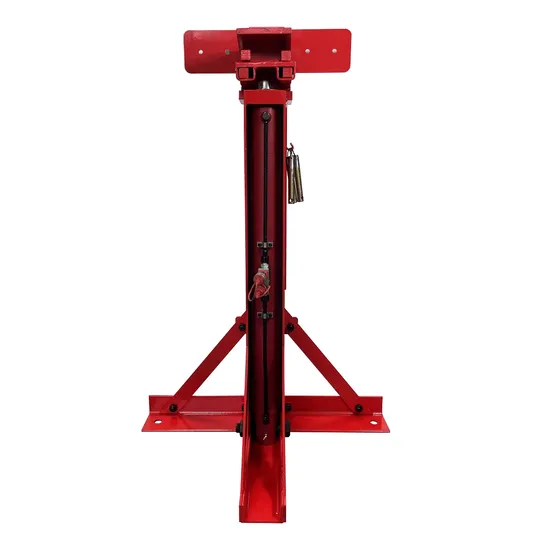

The three-stage bolt type hydraulic jacks is specially developed by our company for the inverted installation and construction of flat bottom corrugated grain silos and enamel tanks. The hydraulic jacks is mainly composed of hydraulic jacking pump station, hydraulic cylinder, rectangular steel frame, etc. At the same time, the three-stage hydraulic jacks adopts the sleeve type process design, the shape volume is smaller, the weight is lighter, the installation and transportation are easy, and the application rate is higher.
Product Parameters

Hydraulic Jacks
Rated lifting weight	50KN
System pressure	16MPa
Hydraulic travel stroke	0.8m
Size of oil inlet and outlet	M18*1.5
Lifting height	2.3m
Hydraulic operating mode	Double-acting
Lifting mode	Rectangular steel frame
Lock mode	Hydraulic lock and Pin lock
Fixture type	Triangular bracket base, self-tapping fixed
Size	800*620*1180 mm
Weight	60 kg
Basic height of hydraulic jacks	1180 mm

Hydraulic Cylinder
Max working pressure	16 MPa
System pressure	380 V
System flow	38 L/min
Individual maximum displacement	5 L/min
Tank capacity	300 L
Motor speed	1470 r/min
Control voltage	DC 220 V
System temperature	20-60ºC
Size	2500*2000*1500 mm

Center Support
Model	ZJ-10
Support height	4.5 meters
Bracket load bearing weight	3T
Movement mode	Manual, 360-degree rotation
Rotation radius	About 3 m
Applicable MIN tank diameter	4 m
Applicable MIN height (tank vault height and height of the first layer of plate)	1.4 m

Our Advantages
1, This set of equipment is mainly composed of hydraulic jacking pump station, hydraulic cylinder, rectangular steel frame, etc., easy to install.
2, The equipment adopts PLC program to control jacking, which has the advantages of simple operation, high jacking synchronization precision and stable jacking process.
3, Hydraulic jacking pump station has two modes of manual and centralized control, hydraulic cylinder can be single or local (several) to adjust (fine tune) lift and fall; Multiple groups can be centrally controlled up and down; The jacking height can precisely control the butt adjustment of the tank wall welds.
4, Each hydraulic cylinder has a safety valve self-locking, equipment operation will not cause the tank or heavy objects to slide or fall due to power failure, the blasting of a high-pressure hose or the failure of a hydraulic cylinder, hydraulic jacking process is safe and reliable.
5, The plunger type hydraulic jacking system has no side force in the jacking process and has no influence on the tank wall.
6, The stroke of the hydraulic cylinder is 800 mm, which can meet the one-time jacking completion of the width of the wall panel below 2300 mm, reducing the jacking time, Save labor and other auxiliary costs.
7, The overall base length of the equipment is only 1180 mm, which can fully meet the inverted construction and installation process of large storage tanks, granaries and enamel tanks.
Detailed Photos

Company Profile
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
FAQ
1. Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.2. We can provide all technical documents and advices to support you for construction procedure clearifications3. We can calculate the most suitable number of hydraulic jack according to the weight of the tank4. We can provide your suitable hydraulic jack accessories with much more competetive price from our long time business partner if you need.5. We can provide site people training service, and operation service or manpower service or as a subcontractor.

---
