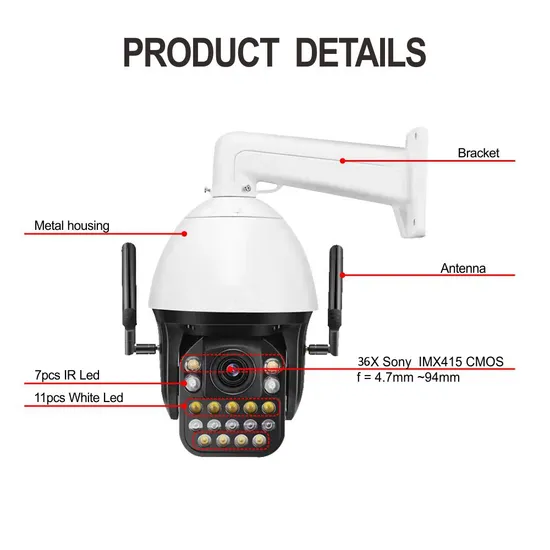

PTZ camera feature 1/2.8" 8.0MPixel Sony CMOS IMX415 36X zoom, auto focus; 300M IR or 150M Full Color with White Light; 11PCS white Light, 7PCS IR Light True Day/Night, 3D DNR, Digital WDR; Backlight compensation, and auto gain control (AGC) Support Onvif 2.6 H.265 main profile/H.264 main profile Encoding Standard SDK,CGI,easily to be integrated with other digital systems Network protocol: TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P Technical parameters
| Model |
| Model No. | SVN-36XCW78-4G |
| Camera |
| Image Sensor | 1/2.8" 8.0M Pixel SONY IMX415 |
| Effective Pixels | 8.0 Mpixes |
| Min. Illumination | Color:0.01Lux@(F1.6, AGC ON) B/W: 0.001Lux@(F1.6, AGC ON) |
| Zoom | 36x, f=4.6mm~167mm, D/N( ICR-Cut) |
| Day/Night | Day / Night / External control(IR Cut Filter) |
| SNR | ≥50dB(AGC OFF) |
| WDR | Digital WDR,≥80dB |
| AGC | Auto / Manual |
| White balance | Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| Digital noise Reduction | DNR,3DNR |
| Shutter speed | 1/2 - 1/20,000s |
| Network |
| Video Compression | H.265 Main Profile/H.264 Main Profile/M-JPEG |
| Streams | Dual streams |
| Frame Rate | Main stream:3840*2160, 1-15fps; 2560*1440, 1-20fps; 1920*1080, 1-25(30)fps; |
| Sub-stream:1280*960, 1-25(30)fps; 640*352,1-25(30)fps |
| Bitrate | CBR/VBR, bitrate:32Kbps~10Mbps variable |
| Audio Compression | G711,PCM |
| P2P | Android,IOS |
| Motion & Vehicle detect | Support |
| Privacy Zone Masking | Support |
| Onvif | Onvif 2.4 |
| Network | 10/100M Base-TX Ethernet, RJ45 Connector |
| Mini SD Card | Up to 128GB(Optional) |
| Wireless |
| 4G | LTE B1/B3/B7/B8/B38/B39/B40/B41 WCDMA 2100MHZ/900MHZ TD-SWCDMA B34/B39 GSM/GPRS/EDGE 900/1800MHZ |
| WIFI (optional) | 802.11b/g/n |
| IR Parameters |
| Luminary | 300M IR+150M Full Color with White Light, 12PCS white Light, 6PCS IR Light |
| Night vision distance | 300M |
| Lamp control | Auto, Manual, by Zoom |
| Dome Features |
| CPU Type | 32 bit ARM CPU |
| Address | 0~255(soft address and hard address) |
| Pan Range | 360° continued rotation |
| Tilt Range | 0~90°(Auto Flip) |
| Manual pan speed | 0~60º/S |
| Manual tilt speed | 0~60°/S |
| Preset speed | 100°/S |
| Actual preset Accuracy | ±0.10° |
| Preset points | 255 |
| General |
| Work temperature | External-35ºC~55ºC |
| Work Humidity | 0%~90% (Non condensing) |
| Power | DC12V±10%; 5A |
| Consumption | <50W |
