Warehouse Flared Welded Galvanized Steel Metal Storage Wire Mesh Decking for Pallet Racking

Product Description

Warehouse Flared Welded Galvanized Steel Metal Storage Wire Mesh Decking for Pallet Racking

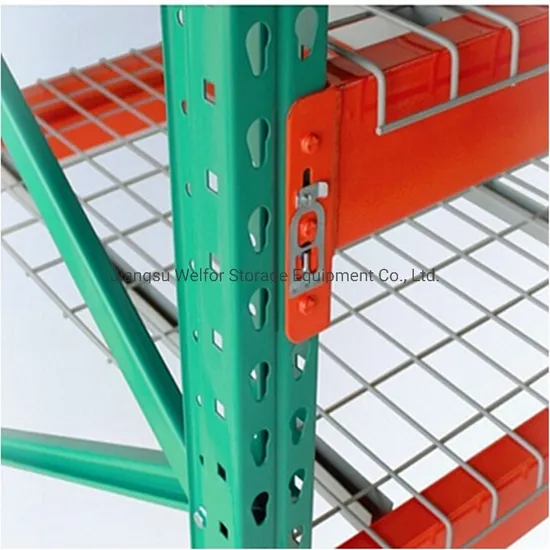

Welfor wire mesh decking made of strong welded wire mesh, with support channel to each pane. Simply drops in place with deck supports wrapped around the top and face of the beams. They are excellent for storing individual components, cartons or irregular loads. It sits on the pallet racking beams and acts as a shelf. This offers an alternative to timber decking and solid steel panel solutions. This product also allows the permutation of sprinkler water in the eve. It is available in either a painted or galvanized finish. Multiple panels can be used on a beam level to provide full coverage and loading per panel can be as much as 1500kg UDL. The standard design involves mesh welded to support bars that then sit on the pallet racking beam to help dissipate the load. A heavy duty design involves using pressed locked steel grating with 90 degree steel angles that sit on the pallet racking beams.
Wire Mesh Decking Advantages
A. Designed for storing few varieties and large quantities of similar goods with very high space utilization
B. Goods are stored and removed from the same side, or done from the opposite side in accordance with the first-in first-out principle
C. Especially suitable for standard goods units

D. Insertion combination between crossbeams and vertical columns

E. Parts: Upright poles, layer plates, crossbeam, bracing, safety pins, wire footing plates, beam supporting
Wire Mesh Decking Features
A. Welding with U type reinforcing steel under wire decking to get a big load capacity;
B. Surface treatment: Galvanization or powder coating; Antirust and Corrosion resistant;
C. Used together with the Pallet rack or Long Span shelving, can be put on the box beam, Step beam or Z beam;
D. The product is nice and durable, widely used in America and Europe.
Technicial data for wire mesh decking

Item No.	Specification (mm)			Wire dia (mm)	Mesh (mm)	Loading capacity (kg)
	L	W	H
01	1350	1200	40	6.4	50x50	500-1000
02	1350	1000	40	6.0	50x50	500-1000
03	1200	1000	40	5.5	50x50	500-1000
04	1150	1000	40	5.5	50x100	400-800
05	1000	1000	40	5.0	50x100	300-600
06	900	1000	40	5.0	50x100	300-600
Other specifications can be customized.

Production process of Wire Mesh Decking
Packing and loading photos of Wire Mesh Decking
Please provide information for quick quotation of Wire Mesh Decking
1. Size of your rack (Width*Depth)?
2. Loading capacity per level of your rack?
3. Numbers of levels of your rack?
FAQ
1, What is MOQ limitation for rack system?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.
2, What is the lead time
++ As per 20FT container loading, manufacture time is about 10-15 days; Regarding some customized items 20-25 days will be covered.
3, What is payments methods you can accept?
++ T/T and L/C are welcomed.
4, How about your sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.
5, What is warranty for your rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
