US$1,300.00
|
3 Pieces
(MOQ)
|
Basic Info.
Structure
Vertical Drilling Machine
Controlling Mode
Electric
Automatic Grade
Automatic
Certification
CE, RoHS, ISO 9001
Product
Vertical Drilling Machine
Max.Drilling Capacity
32mm/40mm/45mm
Spindle Travel
130mm(5-1/8")
Step of Spindle Speed
6 Steps
Range of Spindle Auto-Feeding Amount
0.06-0.30mm/R
Max.Travel of Headstock
250mm(10")
Worktable Size of Avaliablity
380×300mm
Net Weight/Gross Weight
440kg/490kg
Packing Size
1850X750&X1000mm
Motor Power
0.75kw/1.1kw/1.5kw
Transport Package
1850*950*1000mm
Specification
1850*950*1000mm
Production Capacity
100s Ets Per Month
Packaging & Delivery
Package Size
185.00cm * 75.00cm * 100.00cm
Package Gross Weight
480.000kg
Product Description

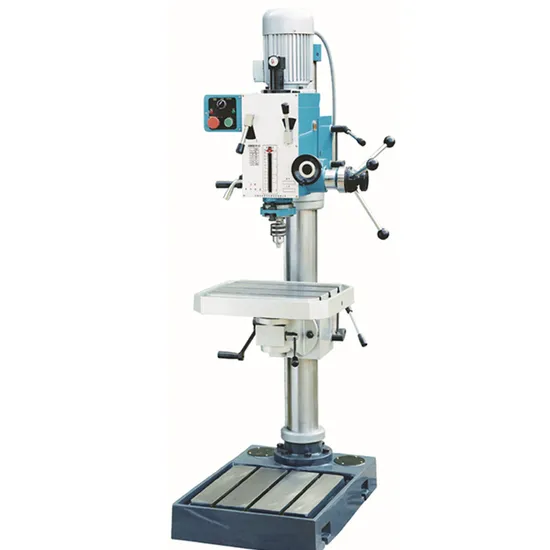

Round Column gear driven vertical Drilling Machine
Main Features:
1. With characteristic auto device for releasing tools, more convenient to change tools.
2. Worktable can be rotated 3600 and also can be tilted 450 for easy operation.
3. Cyclic change of spindle speed.
4. Headstock can be swiveled freely in per direction
5. Adjustable accurate depth setting with auto feed cut out for increased productivity
6. Both head and table are mounted on independent rack and pinions for ultimate positioning versatility
7. Coolant pump system with flexible hose
8. Work light mounted in convenient location
Standard accessories:
Drill chuck 1-13mm/B16
Drill chuck holder
Removing block
Optional accessories:
Work lamp
Coolant system
taper sleeve
Face milling cutter Φ63mm
Milling chuck(8pcs/set)
Drill chuck
Boring arbor
Auto-tapping electrical
vice
Specifications:
| Specification | Z5032Z Z5040Z Z5045Z | Z5032 Z5040 Z5045 |
| Max.drilling capacity | Φ32mm/Φ40mm/Φ45mm(1-1/4"/1-5/8"/1-3/4") |
| Spindle taper | MT3/MT4/R8 |
| Spindle travel | Φ130mm(5-1/8") |
| Step of spindle speed | 6 steps |
| Range of spindle speed 50Hz | 80-1250rpm |
| 60Hz | 95-1500rpm |
| Step of spindle auto-feeding | 6 steps | / |
| Range of spindle auto-feeding amount | 0.06-0.30mm/r | / |
| Min.distance from spindle axis to column | 290mm(11-3/8") |
| Max.distance from spindle nose to worktable | 725mm(28-1/2") | 700mm(27-1/2") |
| Max.distance from spindle nose to stand table | 1125mm(44-1/4") |
| Max.travel of headstock | Φ250mm(10") |
| Swivel angle of headstock (horizontal / perpendicular) | 360° |
| Max.travel of worktable bracket | Φ600mm(23-5/8") |
| Worktable size of avaliablity | 380×300mm | 730×210mm |
| Swivel angle of table horizontally | 360° |
| Table leaned | ±45° | / |
| Size of stand worktable of avaliability | 417×416mm |
| Motor Power | 0.75KW/1.1KW/1.5KW | 0.75KW/1.1KW/1.5KW |
| speed of motor | 1400rpm | 1400rpm |
| Net weight/Gross weight | 440kg/490kg | 470kg/530kg |
| Packing size | 1850×750×1000mm | 1850×950×1000mm |
| Loading amount/20" container | 18pcs | 12pcs |
If you are interested in cheap vertical small drilling machine pls contact us
TENGZHOU UNI-TECH CO.,LTD
>>
