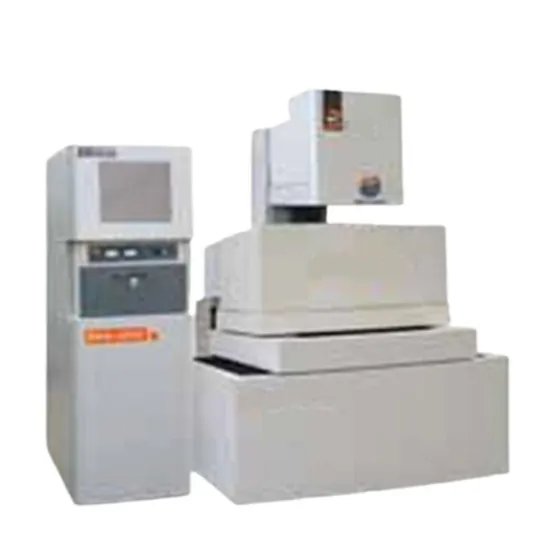

C Type Precision Wire Cut EDM Bmt400c/Bmt500c/Dkt32c/Dkt40c

Product Description

Features: Intelligent Database, No experience required Patented High frequency system,High efficiency lower consumption 5 axis Servo (optional) Intelligent digital tracking system, real-time monitoring High precision linear guide way,ball screw Ensure the accuracy of the machine, Auto lubrication system.

Model No.	BMT400C	BMT500C	DKT32C	DKT40C
Item No.
Specification
Control	Servo control	Servo control	Step control	Step control
XY travel	320x400 mm	400x500 mm	320x400 mm	400x500 mm
U/V travel	60x60 mm	60x60 mm	60x60 mm	60x60 mm
Worktable size	420x650 mm	500x750 mm	420x650 mm	500x750 mm
Cutting thickness	300 mm	300 mm	300 mm	300 mm
Max.loading weight	400 kg	500 kg	400 kg	500 kg
Machine weight	1600 kg	1800 kg	1600 kg	1800 kg
Precision	≤±0.003 mm	≤±0.003 mm	≤±0.005 mm	≤±0.005 mm
Roughness	≤0.8μm	≤0.8μm	≤1.0μm	≤1.0μm
Max work current	10A	10A	10A	10A
Max.machining efficiency	300mm²/min	300mm²/min	300mm²/min	300mm²/min
Min.wire consumption	0.01mm/800000mm²	0.01mm/800000mm	0.01mm/800000mm	0.01mm/800000mm
Max taper (no more than 100mm)	±6(optional±10°)	±6(optional±10°)	±6(optional±10°)	±6(optional±10°)
Screws and guide ways	Precision ball screws/linear guideway	Precision ball screws/linear guideway	Precision ball screws/linear guideway	Precision ball screws/linear guideway
Lubrication of screws and guide ways	Electrical Auto-lubrication system	Electrical Auto-lubrication system	Electrical Auto-lubrication system	Electrical Auto-lubrication system
Double direction Auto-wire tension system	Standard	Standard	Standard	Standard
Z axis motorized	Standard	Standard	Standard	Standard
2 axis DRO	Standard	Standard	Standard	Standard
Handle remote control box	Standard	Standard	NO	NO
Coolant filtration system	Multi-filtration coolant tank (Min 5 um)	Multi-filtration coolant tank (Min 5 um)	Multi-filtration coolant tank (Min 5 um)	Multi-filtration coolant tank (Min 5 um)
Type of controller	BMW6000	BMW6000	BMW6000	BMW6000
Standard Accessories			Optional Accessories
			BMW-3000,BMW-5000 controllers are optional.
			5 axis Servo
			Closed-loop with scale are optional for BM Series machines

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
