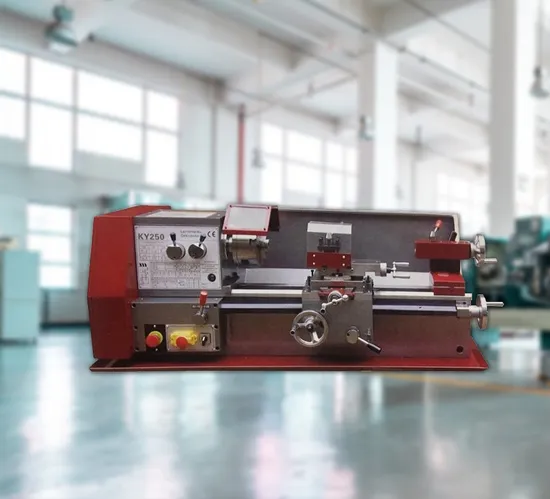

Mini Horizontal Metal Lathe Machine Torno Manual Gear Head Engine Bench Lathe Machine (KY250)

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.

KY250

Power Source

Electric

Controlling Mode

Artificial

Automatic Grade

Manual

Setting Mode

Floor-type

Precision

High Precision

Certification

Motor

750W

Height of Center

125mm

Taper of Tailstock Sleeve

Mt2

Max. Travel of Tool Post

70mm

Modulum Thread Cutting

0.1-1.25mm(10 Kinds)

Net Weight

151kg

Overall Dimensions(L*W*H)

1220*550*410mm/1470*550*410mm

4-Jaw Chuck(125mm)

1 PC

3-Jaw Chuck(125mm)

1 PC

Change Gears

1 Set

Transport Package

Plywood Case

Specification

KY250

Trademark

Can use customers′s brand

Origin

China

HS Code

84581900

Production Capacity

150-200sets/Month

Product Description

Features
1.Economical, widely useful hobby lathe.
2.V-way bed is precision ground.
3.Spindle is supported by precision tapered bearing.
4.Gear head enables to quickly change speeds.
5.Power longitudinal feed allows threading.
6.Adjustable gids for slidways.
7.Change gears has large feed and threading function.
8.Tailstock may be offset for turning tapers.

Specifications
Height of center	125mm
Max. Distance between centers	450(700)mm
Max. Length cutting	420(660)mm
Max. Swing over bed	250mm
Max. Swing over carriage	130mm
Taper of spindle nose	MT4/27mm
Spindle speed range(6 steps)	115-1620mm
Metric thread cutting	0.2-3.5mm(20 kinds)
Inch thread cutting	8-56/l(20 kinds)
Modulum thread cutting	0.1-1.25mm(10 kinds)
Range of longitudinal feed	0.05-0.1mm
Max. Travel of tool post	70mm
Max. Round angle of tool post	45º
Taper of tailstock sleeve	MT2
Motor	0.75KW
Overall dimensions(LWH)	1220550410mm/1470550410mm
Net weight	151kg
Optional accessories
4-jaw chuck(125mm)	1 pc
Follow rest $ Steady rest	1 set
Face plate	1 pc
Rolling center	1 pc
Steel cutter(6pcs)	1 set
Stand	1 pc
Standard accessories
3-jaw chuck(125mm)	1 pc
Chip tray & splash guard	1 set
Safety chuck cover	1 set
V-Belt(0-710)	1 pc
Dead center 4# 2#	1 pc
Dead center 4# 2#	1 pc
Inner hexagonal wrench 6mm	1 pc
Dead wrench 10mm 13mm 18(19)mm	1 pc
	1 pc
	1 pc
Change gears	1 set
Wrench for tool post	1 pc
