Laboratory Ht Steamer Stenter - Horizontal Type Mini Stenter with Steamer

Product Description

Product Description

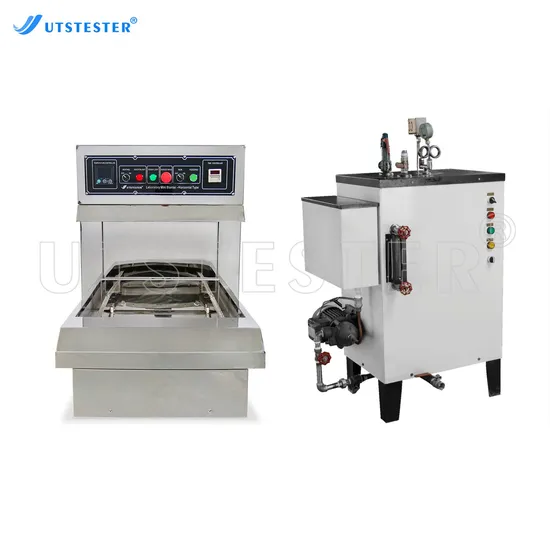

D018A-2 Laboratory Mini Stenter with steamer, is applicable for garment, dyeing and finishing, chemical and other industries. It is similar with D018A-1, with added function of steaming.
It is used to conduct dry, stereotypia, resin treatment baking, pad dyeing baking and thermal fixation tests. So as to obtain correct resin treatment recipe, test dyeing and finishing color changing situation, as well as verify the test results of medicament. Also can be used to fulfill hand-feel sample plate production to get right color and texture sample plate.
Working Process
Sample preparation (Needle plate shelf) - Automatic feedstock - Automatic count - Auto return of material and finish test.
Product Presentation
Application
Applicable for garment, dyeing and finishing, chemical and other industries.
Feature Digital display of temperature and time; Settable temperature within room temperature~250ºC; Stainless steel SUS 304 construction with heat insulation layer; Advanced motor drive system for delivering fabric samples; Automatic temperature controlling system with the accuracy of ±1%; Two-direction(Left and Right & Front and Back) adjustable pin-frame, to mount the samples in tension; Switch for adjustable hot air quantity onto fabric upper and lower surfaces to minimize the temperature difference between fabric upper and lower surfaces; Press the button to feed fabric sample into the drying chamber and fabric sample is automatically transported out of the drying chamber with audible alarm when the set time is due; The machine is able to accurately simulate the actual production conditions, such as dyeing, washing and fastness test. Equipped with new dyeing machine dedicated computer, precision of the heating system, accurate temperature control and time control, help to improve the success rate of samples. Product Parameters

Model	D018A-1
Sample size	350 x 400mm (Effective size 300 x 350mm)
Temperature range	20-250ºC
Heat preservation time control	10 sec to 360secs can be preset. Auto stop once test finished and alarm.
Display mode	LCD digital display
Testing time range	1-999s
Power supply	3∮AC 380V 50/60HZ 6KW
Dimension	1360 x 730 x 840 mm(L x W x H)
Weight	120 kg

More Products
Company Profile
Our Exhibition
Our Customers
Our Advantages
FAQ
Q: How is your service?
- All of test devices will be calibrated and debugged before delivery to guaranty the quality.
- Our professional after-sale team will help you solving any problem within 24 hours* 7 days by emails or videos
- English operation manual and operation video will guide you how to use it.
- On-site machine training & installation can be provided with certain charges.
Q: What's your warranty period? A.12 months. In case of product problems, we provide needed spares parts for free during the warranty (exclude consumables and man-made damages)
Q: What's the payment term?
A: Usually TT, L/C are available. For others, please contact with us for negotiation.
Q: What's your lead time? A.We have professional production line and stuff whom can make a nice quality in a short time. Usually, within 5-25 days is ok, which is based on the stock status.
Q: Are you able to provide a ISO 17025 calibration certificate?
A: Yes, we generally provide two calibration certificates(optional).
• ISO 17025 certificate provided by a third party inspection company with charges.
• Calibration certificate provided by UTS without charges.
Q: Can you send report of fumigation report?
A: Our packing is composite board, not log, so it do not need fumigation treatment.
