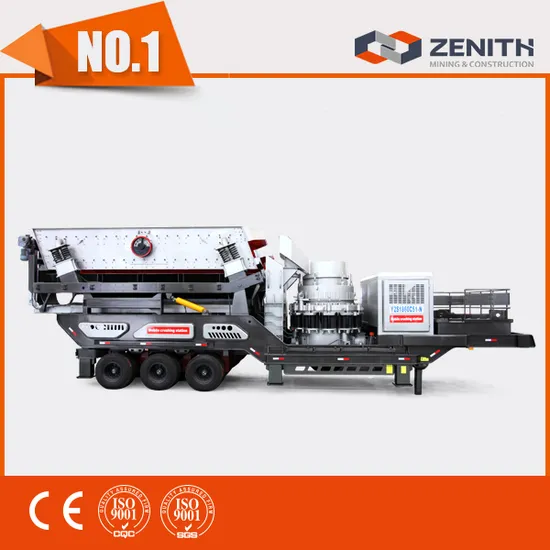

Mobile Stone Crusher Crushing Plant and Screening Plant

Product Description

Mobile Stone Crusher Crushing Plant and Screening Plant:
Mobile Stone Crusher Crushing Plant and Screening Plant contain 7 series and 72 models products. And one series mainframes share one kind of metal-frame in the machine farm, so fresh-investors can get machine quickly and reinvestment won't take too much cost to update the crushing plant.
Mobile Stone Crusher Crushing Plant and Screening Plant Advantage:
• Compact structure and dismountable parts are good for transportation, cutting the transportation expenses.
• Equipped with supporting-metal, the machine can quickly start to work without any foundation.
• The vibrating feeder can finish the pre-screening work, which can increase the crushing capacity and cut the production cost.
• One metal-frame design fits for many mainframe crusher, we can prepare many inversion and fresh-investors can get machines quickly. Also reinvestment won't take too much cost to update the crushing plant.
• Equipped with sustained hoisting tools, operating platform, repair kit, and centralized control system, etc., to humanize maintenance and applications
• A water-jet dust suppression device and other relevant devices are added as options to satisfy users' various requirements
Mobile Jaw Crusher Plant parameters:

Model	Specs. of screening equipment	Specs. of crushing equipment	Specs. of main belt conveyor	Hopper volume(m3)	Max.feeding size (mm)	Transportation dimension(mm)
KE600-1	TSW0936	PE600×900	B800×8.3m	5.3	500	12150×2600×3950
KE750-1	TSW1139	PE750×1060	B1000×8.5m	7	630	13000×2850×4400
KE760-1	TSW1139	PEW760	B1000×8.5m	7	640	13000×2800×4200
KE860-1	TSW1345	PEW860	B1200×9.5m	8	720	14600×3000×4500
KE1100-1	TSW1548	PEW1100	B1400×9.5m	11	930	14050×2900×4000
KJ98-1	TSW1139	HJ98	B800×8.3m	5.9	560	12150×2600×3950
KJ110-1	TSW1345	HJ110	B1000×8.5m	8.5	660	13200×3000×4400
KJ125-1	TSW1345	HJ125	B1400×9.5m	8	800	14600×3000×4500
KF1214-1	TSW0936	PFW1214	B800×8.3m	5.3	500	12150×2600×3980
KF1315-1	TSW1345	PFW1315	B1200×9.5m	8	600	14600×3100×4500
KF1415-1	TSW1548	PFW1415	B1200×9.5m	11	700	14050×3000×4000

Medium and fine crushing and screening portable plant

Model	Specs. of screening equipment	Specs. of crushing equipment	Specs. of main belt conveyor	Max.feeding size (mm)	Transportation dimension(mm)
KC75-2	3Y1848	CS75B	B800×7.5m	150	12600×3000×4500
KC160-2	3Y1860	CS160B	B800×8.5m	205	13800×3000×4500
KT100-2	3Y1848	HST100H1	B800×7.5m	185	12600×3000×4500
KT160-2	3Y1860	HST160H1	B800×8.5m	185	13800×3000×4500
KT250-2	3Y1860	HST250H1	B800×8.5m	215	13800×3000×4500
KH300-2	3Y1860	HPT300C2	B800×8.5m	210	13800×3000×4500
KF1214-2	3Y1860	PFW1214	B800×8.5m	250	13800×3000×4500
KF1315-2	3Y2160	PFW1315	B1000×8.5m	300	13800×3150×4500
KF1318-2	3Y2160	PFW1318	B1000×8.5m	300	13800×3150×4500
KS1848-1	3Y1848	--	B800×7.5m	--	12590×3000×4500
KS1860-1	3Y1860	--	B800×8.5m	--	13800×3000×4500
KS2160-1	3Y2160	--	B1000×8.5m	--	13800×3000×4200

Complete portable plant

Model	Specs. of screening equipment	Specs. of crushing equipmentt	Specs. of main belt conveyor	Hopper volume(m3)	Max.feeding size (mm)	Transportation dimension(mm)
KC75-2D	3Y1848	CS75B	B800×7.5m	7.2	150	16850×3000×4500
KC160-2D	3Y1860	CS160B	B800×8.5m	7.2	205	16850×3000×4500
KT100-2D	3Y1848	HST100H1	B800×7.5m	7.2	185	16850×3000×4500
KT160-2D	3Y1860	HST160H1	B800×8.5m	7.2	185	16850×3000×4500
KT250-2D	3Y1860	HST250H1	B800×8.5m	8	215	16850×3000×4500
KH300-2D	3Y1860	HPT300C2	B800×8.5m	8	210	16850×3000×4500
KF1214-2D	3Y1860	PFW1214	B800×8.5m	7.2	250	16120×3000×4500
KF1315-2D	3Y2160	PFW1315	B1000×8.5m	8	300	16120×3150×4500
KF1318-2D	3Y2160	PFW1318	B1000×8.5m	8	300	16120×3150×4500
KS1848-1D	3Y1848	--	B800×7.5m	7.2	--	16910×3000×4500
KS1860-1D	3Y1860	--	B800×8.5m	7.2	--	16910×3000×4500
KS2160-1D	3Y2160	--	B1000×8.5m	8	--	16910×3000×4500

Sand-making and shaping portable plant

Model	Specs. of screening equipment	Specs. of crushing equipment	Specs. of main belt conveyor	Max.feeding size (mm)	Transportation dimension(mm)
KV8518-2	3Y1848	VSI8518	B800×7.5m	40	14200×3000×4500
KV8522-2	3Y1860	VSI5X8522	B800×8.5m	40	14200×3000×4500
KV9526-2	3Y1860	VSI9526	B800×8.5m	45	14200×3000×4500
KV9532-2	3Y1860	VSI5X9532	B800×8.5m	45	14200×3000×4500

Fine crushing and sand washing portable plant

Model	Specs. of screening equipment	Medium and fine crushing and screening portable plant	Specs. of crushing equipment	Max.feeding size (mm)	Transportation dimension(mm)
KV8518-2X	3Y1848	XL-915	VSI8518	40	13700×3000×4500
KV8522-2X	3Y1860	2XL-915	VSI5X8522	40	13700×3000×4500
KV9526-2X	3Y1860	2XL-915	VSI9526	45	13700×3000×4500
KV9532-2X	3Y1860	2XL-915	VSI5X9532	45	13700×3000×4500
KC75-2X	3Y1848	XL-915	CS75B	150	13700×3000×4500
KC160-2X	3Y1860	XL-915	CS160B	205	13700×3000×4500
KH300-2X	3Y1860	2XL-915	HPT300C2	210	13700×3000×4500
KT250-2X	3Y1860	2XL-915	HST250H1	215	13700×3000×4500

Three-in-one portable plant

Model	Specs. of screening equipment	Model	Specs. of crushing equipment	Hopper volume(m3)	Max.feeding size (mm)	Transportation dimension(mm)
KF1214-3	3Y1848	TSW0936	PF1214	5.5	300	16400×2810×4500
KF1214-3	3Y1848	TSW0936	PFW1214	5.5	500	16400×2810×4500
KE500-3	3Y1548	TSW0936	PE500×750	5.5	425	16400×2760×4500
KE600-3	3Y1848	TSW0936	PE600×900	5.5	500	16400×2760×4500

Four-in-one portable plant

Model	Specs. of screening equipment	Model	Complete portable plant	Sand-making and shaping portable plant	Max.feeding size (mm)	Transportation dimension(mm)
KE400C55-4	3Y1237	GZD960×3500	PE400×600	PYB900	350	15150×2800×4500
KE400C75-4	3Y1237	GZD960×3500	PE400×600	CS75B	350	15150×2800×4500
KE500C55-4	3Y1237	GZD960×3500	PE500×750	PYB900	425	15150×2800×4500
KE500C75-4	3Y1237	GZD960×3500	PE500×750	CS75B	425	15150×2800×4500
KE400F110-4	3Y1237	GZD960×3500	PE400×600	PF1010	350	15150×2800×4500
KE500F110-4	3Y1237	GZD960×3500	PE500×750	PF1010	425	15150×2800×4500

---
