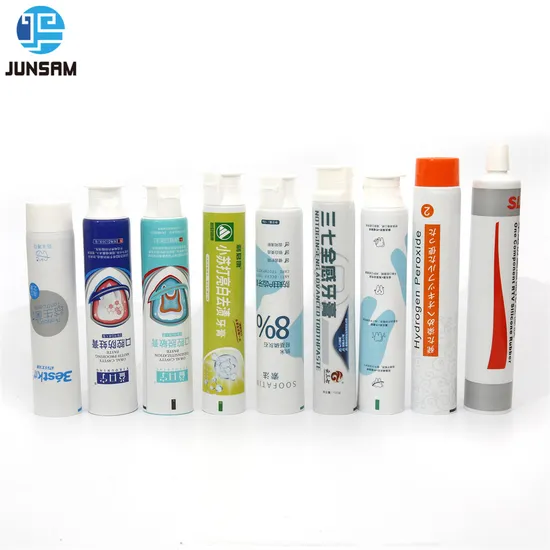

Aluminum-Plastic & Laminated Tube for Toothpaste Packaging

Product Description

Product Description
ABL tube(aluminium barrier laminated tube)features:
ABL tube is a kind of packaging container made of aluminum foil and plastic film by co-extrusion composite process, and then processed into tubes by special pipe making machine. Its typical structure is PE/PE+ EAA/AL/PE+EAA/PE. ABL tube is mainly used for packaging cosmetics with high hygiene and barrier requirements. Its barrier layer is aluminum foil.
(1) High barrier. aluminum foil has light resistance, oxygen resistance and water resistance and other barrier properties, on the one hand can prevent external substances into the interior of cosmetics, prevent cosmetics oxidation deterioration, on the other hand can prevent cosmetics moisture or essence and other ingredients spread to the outside through the pipe, so as to ensure the quality of cosmetics.
(2) Low cost. In order to achieve the same barrier properties, ABL tubes use less material, lower cost and better economics than PBL tubes and PE extrusion tubes.
The barrier perfomance of the laminated tube is better than plastic tube,because the middle layer is aluminum foil, so the products are widely used in toothpaste and cosmetic industry.
Advantages of Using Tube Packaging for Specialty Cosmetics

1. LOWER PRICE :	Improvements in technology have made this packaging system more affordable
2. PROTECTIVE :	Contents remain well protected and free from contamination.
3. ELEGANT :	Attractive Possess a bright surface and lend themselves to trouble-free printing, this enhances shelf and customer appeal.
4. NONTOXIC& HYGIENIC :	Non -Toxic, hygienic, non-absorbent, Impart no taste, flavour, odour or color to contents.
5. LIGHTWEIGHT :	Easy to handle. Reduces transport and handling cost.
6. EASY AVAILABILITY :	Plastic tubes are easily available.
7. USER CONVENIENCE :	Easy to use, unbreakable, easy to carry, light in weight, hygienic, non-toxic.

Product Parameters

Product	Aluminium Laminated Tube with Offset Printing Design
Material	aluminum+plastic
Diameter	Dia 13 mm, 16 mm, 19 mm, 22 mm, 25 mm, 28 mm, 30 mm, 32 mm, 35 mm, 38mm, 40mm, 45mm, 50mm, 60mm
Tube Length	43mm--220mm
Tube Volume	3ml--200ml
Printing	Offset printing,Hot-stamping, Silk-screen, Electroplate
Nozzle Design	With membrane, open end, elongate nozzle
Caps	Screw caps or Standup(top-slip)caps,long nozzle cap,mushroom cap,flip top cap,various designs of caps for options
Layer	1~5
MOQ	1pc-10000pcs

Regular Sizes of ABL TubeImportant note: the size may varies due to different formulation of products.

Diameter	Length(mm)	Suggested Volume
13.5	55~65	5ml / 0.17oz
13.5	62~71	6ml / 0.20oz
13.5	70~80	7ml / 0.24oz
13.5	78~85	8ml / 0.27oz
16	60~70	10ml / 0.34oz
16	72~80	10ml / 0.34oz
16	100~110	15ml / 0.51oz
19	57~70	15ml / 0.51oz
19	77~88	15ml / 0.51oz
19	96~107	20ml / 0.68oz
19	115~126	25ml / 0.85oz
22	95~105	25ml / 0.85oz
22	108~119	30ml / 1.01oz
22	122~133	35ml / 1.18oz
25	89~100	30ml / 1.01oz
25	101~112	35ml / 1.18oz
25	140~150	50ml / 1.69oz
28	140~145	60ml / 2.03oz
30	120~130	50ml / 1.69oz
30	170~175	90ml / 3.04oz
30	175~180	100ml / 3.38oz
32	165~170	100ml / 3.38oz
32	175~180	120ml / 4.06oz
35	165~170	120ml / 4.06oz
38	130~140	100ml / 3.38 oz
38	180~190	180ml / 6.08 oz
40	140~150	200ml / 6.76 oz
40	200~210	200ml / 6.76 oz

Flip cap, screw cap, octagonal cap, sanitary cap.. Various caps are available apart from these.
Please contact us for more optoins.
More options of ABL tube / Laminated Tube(click here):
Packaging & Shipping
Company Profile
JunSam (ZhongShan) Packaging Products Co., Ltd. is specialized in the manufacturing of Cosmetic Packaging and Containers, such as Tube Packaging, Aluminum Container, Aluminum Packaging,and Aluminum Collapsible Tubes, Aluminum-Plastic Tube,plastic tube and etc.
The company has been integrated with the most advanced Tube Packaging-making technology and equipped with 8 advanced automatically production lines for Aluminum Collapsible Tubes. All Aluminium Tubes we make are compliant with the standard in this field, British BS 2006-1984.Thanks to the experience of professional technicians, highly trained workers, strict quality control system and impressive performance of the equipment, we've established long-term and reliable relationship with our honor customers' trust around the world. We are dedicated to providing customers high quality, most competitive price and desiring services.
silk-screen Printing machinery :
We are capable of printing artwork with complicated design, which makes your packaging outstanding from the common competitors, and benefits your marketing.Off -set printing machinery:
We could produce laminated tubes at the most competitive price with our domestic print machinery.Test:
Inner lacquer / lining must pass the test before releasing the shipment.
The lacquer is sprayed to the inner wall of the aluminum soft tube evenly to block chemical reaction especially between strong- ammonia hair color cream and the aluminum.Warehouse:
Our warehouse covers an area over 6,000 square meters, which makes it very practical to consolidate the raw materials and production and deliver the shipment accoring to the customers' request, thus save customer's storage cost. Overseas FairCosme Tech Show, 2019, Japan, booth # 21-7 EBS Show, 2019, Mexico, booth # D437D
FAQ1.
Q: How many colors can you do with printing on the tubes?
A: We can do max. 8 colors with plastic tubes, and max. 6 colors with the laminated/toothpaste tubes.
2.
Q: How is your MOQ of the aluminum Collapsible Packaging Tube/ laminated tube/ plastic tube?
A: Our MOQ is generally 10,000 pieces each design/art, but for the customers who have various skus, we could do 10,000~30,000 pieces for each sku.
3.
Q:How is your leadtime?
A: It generally takes 15 to 20 work days for mass prodcution (depend on the styles)and 7 work days for customized samples. But we always do our best to complete the urgent orders
4.
Q: Can we get some samples from you? Are there any cost for them?
A: Storage samples are always free(not include the freight ), but customized samples with your art printed will cost for the mold, and we need about 7 days to make it.
5.
Q: What is your payment term?
A: Normally 30% deposit before production and 70% balance should be paid by T/T before shipment, while it could be negotiable for the good credit old customers.
6.
Q: What is the diameter range are you capable of with the plastic tube?
A: Our general diameter ranges from 13 mm to 60 mm.
7.
Q: I'm in a difficult position to make decision between ABL or PBL for our new product. Do you have any suggestions?
A: Generally speaking, ABL tube is recommended if you are looking for better chemical resistance, while PBL tube is recommended if you are after fine printing and environmental performance.
Please feel free to contact us to get more information and free samples!

Quintina Li
(sales manager)
Tel: 0086-86681856

---
