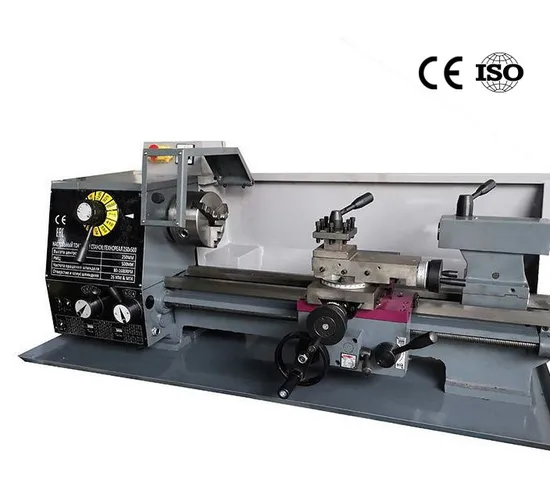

Senmo Cjm250 Mini Bench Lathe Senmo Mini Hobby Lathe

US$926.00-1,085.00 1 Set (MOQ)

Basic Info.

Model NO.
CJM250
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
Precision
Certification
CE
Condition
New
Product Name
Mini Bench Lathe
Swing Over Bed
250mm
Swing Over Cross Slide
100mm
Distance Between Centers
500mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84589900

Product Description

Bench Lathe CJM250 Feature
·Most economical, widely useful hobby lathe. Power longitudinal feed allows threading
·V-way adopts double triangle and rectangle slideway. Induction hardened and ground bedway
·Spindle is supported by precision tapered roller bearing. Geared headstock enables to change speeds quickly
·Large MT4 spindle bore. Precise cuts with cross & longitudinal power feed

Specifications CJM250
Swing over bed 250mm
Swing over cross slide 100mm
Distance between centers 500mm
Spindle bore 26mm
Spindle taper MT4
Number of spindle speeds 12
Range of spindle speeds 80-1600rpm
Carriage travel 130mm
Tool post travel 60mm
Number of metric threads 15
Range of metric threads 0.25-2.5mm
Number of imperial threads 9
Range of imperial threads 12-96 T.P.I
Longitudinal feed 0.03-0.375mm/r
Cross feed 0.015-0.188mm/r
Tailstock quill travel 55mm
Tailstock taper MT3
Main motor 750W
N.W./G.W. 163/180kg
Packing size 1200x620x600mm

Standard Accessories Optional Accessories
·3-jaw chuck (125mm) ·4-jaw chuck (160mm)
·V-belt (O) 630 ·Back plate
·Dead center ·Follow rest
·Tool wrench ·Steady rest
·Allen key ·Face plate (160mm)
·Open end wrench ·Live center
·Splash guard ·Turning tool set
·Oil tray
·Threading dial
·Stand

Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
