US$340.00-380.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
OS20-S Laboratory Overhead Stirrer
Application Area
Chemical
Certification
CE, ISO, GOST, SONCAP, CCC, API, CE, ISO
Type
Overhead Stirrer, Hot Plate
Motor Type
Brushless DC Motor
Max. Stirring Quantity[H2O]
20L
Overload Protection Display
LED Lights
Chuck Range Diameter
0.5-10mm
Operating type
Continuous Operating
Transport Package
Hard Carton Packing
Production Capacity
30000PCS/Year
Product Description
Product Description

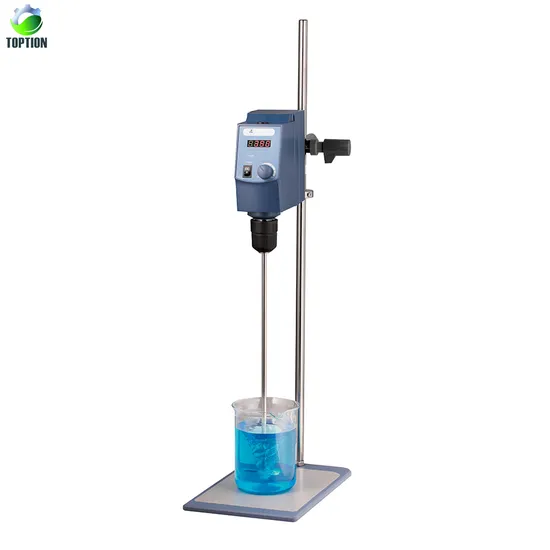

20L LED Digital Overhead Stirrer , Max. stirring quantity 20L -----OS20-S
Overhead stirrer is suitable for mixture of high viscosity liquid or solid-liquid. Widely used in chemical synthesis, pharmaceutical, physical and chemical analysis, petrochemical, cosmetics, health care, food, biotechnology and other fields.
Product Parameters
| Specifications | OS20-S | OS40-S |
| Max. Stirring quantity (H2O) | 20L | 40L |
| Motor type | Brushless DC motor | Brushless DC motor |
| Motor input power | 60W | 120W |
| Motor output power | 50W | 100W |
| Voltage | 100-240V,50/60Hz | 100-240V,50/60Hz |
| Power | 70W | 130W |
| Speed range | 50-2200 rpm | 50-2200 rpm |
| Speed display accuracy | ±3rpm | ±3rpm |
| Speed display | LED | LED |
| Overload protection display | LED lights | LED lights |
| Max. torque | 40Ncm | 60Ncm |
| Viscosity max. | 10000mPas | 50000mPas |
| Chuck range diameter | 0.5-10mm | 0.5-10mm |
| Dimensions [W*H*D] | 83*220*186mm | 83*220*186mm |
| Weight | 2.8kg | 2.8kg |
| Protection class | IP42 | IP42 |
| Permissible ambient temp. And humidity | 5-40ºC, 80% | 5-40ºC, 80% |
Detailed Photos
High reliability and outstanding performance. A wide range of speed from 50 to 2200rpm. Brushless DC motor for long life, maintenance free and explosion proof. LED screen for monitoring actual speed. Safety circuits allow for safe stop function in anti-stall or overload conditions.
