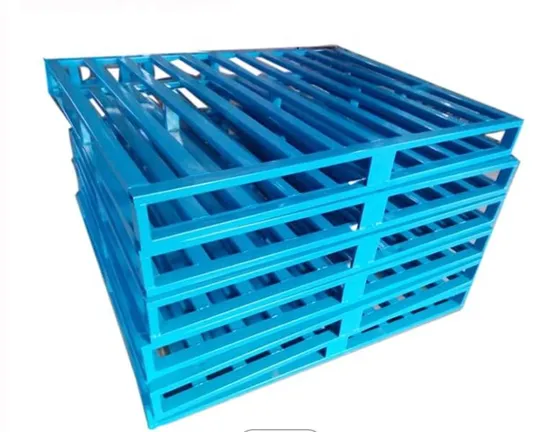

4-Way Euro Warehouse Storage Equipment Welded Steel Metal Pallet

Product Description

Steel pallet description
Steel pallet is widely used in many industries. Due to its durable character, It gradually replace
wooden pallet and plastic pallet market place.

Nowadays steel pallet is often used with racking system. Galvanized steel pallet has advantage
in cold warehouse. Powder painted steel pallet has many colors for your option. Customers can
book any color they want and like. While plastic pallet can not fulfill this.

Steel pallets make it easier to move heavy stacks. Loads with pallets under them can be handled
by forklift trucks, or even by hand-pumped and hand-drawn pallet jacks.

Features
1.Stackable, Cleanable, Durable, and Splinter Free
2.Two-way and Four-way pallet
3.Fire proof, Moisture and Liquid proof
4.Repairable, and low maintenance
5.Custom design is available

Comparisons of Steel Pallets to Wood and Plastic Pallets

Specifications	Galvanized steel pallet	plastic pallet	wood pallet
durable	A	A/B	B
Fireproof	A	C	D
Re-usable	A	A/B	C
Strength	A	A/B	A/B
Infinitely Recyclable	A	B/C	B/C
Recyclable at value not cost	A	D	B
Safety	A	A/B	B/C
Low Maintenance	A	B	B
Food Grade	A	A	C
Ideal for Racking	A	A/B	A/B
Splinter free	A	B	C

The following is some of our popular dimensions of Steel Pallet. The load ranges from 300kg to 2000kg. Non-standard types can be customized.

Steel Pallet Standard Size
Item		Dimensions(mm)				Pack(20'fcl)	Loading Capacity(kg)
Single Faced	Double Faced	Length	Width	Height	Foot Height
SP001	DF001	1300	1100	120-180	90-140	224	500-3000
SP002	DF002	1200	1000	120-180	90-140	244
SP003	DF003	1100	1100	120-180	90-140	280
SP004	DF004	1000	1000	120-180	90-140	302
SP005	DF005	1000	800	120-180	90-140	364
SP006	DF006	1200	800	120-180	90-140	304
ISO Standard Dimensions Dynamic Load Static Load Europe 1200mm*1000(800)mm 1000-3000kg 1000-6000kg America 1219mm*1016mm 1000-3000kg 1000-6000kg Japan&Korea 1100mm*1100mm 1000-3000kg 1000-6000kg Note: Color is optional and the dimension of pallets can be designed as per customers' requirements. Surface Treatment: Power Coating or Galvanized
Above is some of our usual dimensions of Pallet Racking
Non-standard types can be customized.

Q&A 1 What is the material being used for your products?---Mild steel Q235, Q195
2 How is the goods being packed?---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading
With standard forklift truck
3 What is the payment terms I can get?---T/T or L/C at sight, DP etc
4,Do you offer R&D support ?
Yes we do. Our professional team provide assistance with design and production to specific requirements of different systems.
We work each of our clients to make sure that we are matching their needed schedules, professional solution and timely delivery.
5, What kind of finish do you provide for your goods?--- A.Electro-galvanized/Zinc plated: B. Hot dip galvanized: C. Powder coating
6 What is the loading capacity? --In general, we have light duty(100~300kg) model,medium-duty(400~800kg) model and heavy-duty(1000~1700kg) model available for your choice.
7 Which product can be used in cold storage?---Mobile rack, wire container, and roll cage are all widely used in cold storage.
8 I don't have drawing or picture available for the custom products, could you design it
for me?Yes, we can make the best suitable design for you but do need to know the details, such as a) dimension b) loading capacity c)stackability d)operation environment
9 What is the minimum quantity I can order?--About30-50 , quantity is variable depend on the size
10 What is your average production lead time?--3-4 weeks against formal order and deposit.
Contact Person
Sophia
WUXI FUPING METAL PRODUCTS CO.,LTD
https://fupingmetal.en.made-in-china.com/

---
