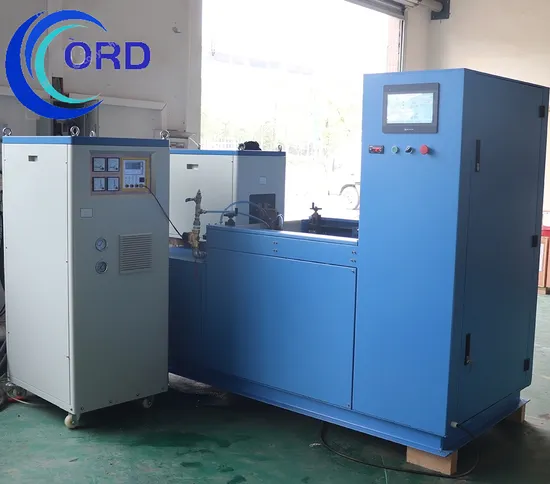

China Manufacturer Supply Intellgent Horizontal Inducion Quenching / Hardening Gear Machine Tool for Various Gears

Product Description

China Manufacturer supply intellgent Horizontal inducion quenching / hardening gear machine tool for Various Gears
Advantage:
1 More than 20 years experience, high quality, stable performance
2 ISO, CE, SGS certificated
3 PLC Control quenching machine line, automatic program, save workers, improve work efficient.
4 Can quench the shaft, Gear and so on/
Features:
1. The lifting by the servo motor, position control by the digital input, precision of 0.001mm, wider rang of speed adjustment. The screw lift used in precision ball screw, leading column used in circular column structure, All pillar are thermal refining 45#. Hard chromium plated, No-rust, No-distortion, to ensure durable of machine.
2. Limit lift of machine position by the inductive proximity switches control. Machine with safe buffering.
3. By the mechanical type, abandoned the heavy, large hydraulic systems, To avoid leakage of hydraulic components and reduced accuracy caused by changes brought about by the oil temperature rate of change of equipment operation.
At the same time, reduce the equipment of use for requirements, Machine are use more simple smaller, operation and maintenance more convenience, rarely needs servicing.
4. Use motor control lift on the top. Can according the length of work piece to adjustment. Can be used clomping table, to ensure normal rotation of work piece.
5. The rotating speed can be adjusted digital on control panel. To meet the needs of high-precision adjustment. According to the size of work piece and requirement of quenching process. Can realiachieve the best quenching effect and quality of the work piece.
6. According to operator who can be used to adjust the position of cabinet. So that will be easy handle and work with great efficiency.
7. Work piece rotation by the frequency conversion motor driven, wider rang of speed adjustment, clear and easy; Drive motor is located above the quench, to prevent the motor damp.
8. Quenched by cooling spray, at below of machine have 500mm high water tank. Without need another water tank. Reduce the installation work.
9. Easy disassembly and convenient maintenance. The main components of electronic products used in Taiwan, long life, low maintenance cost. System uses the full English menu, intuitive interface, easy operation. The CNC panel can direct input and control quenching time, vertical speed, rotation speed etc. Can store a variety of procedures, easy to calls, especially for multi-stage, variable speed requirements and complex process etc

Model	ORD-500MM
Work postion	1
The larggest length of the clamping workpiece	200MM
The max quenching length	200mm
the max turning diameter	600mm
workpiece rotation speed	15~200r/min
Quenching feeding speed	6~3000mm/min
Workpiece down s fast speed	400mm/min
the max bear weight	500KG
positioning accuracy of the quenching machine line	PLC OR CNC
quenching machine line operation way	automatic or manual
quenching way	1continous scan quenching 2 Whole Quenching 3 Quenching one Tooth BY one Tooth
quenching speed adjustable	stepless adjustable
workpiece rotational speed adjustable	stepless adjustable
Water cooling sytem	spray water or spray liquid

Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.
In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
